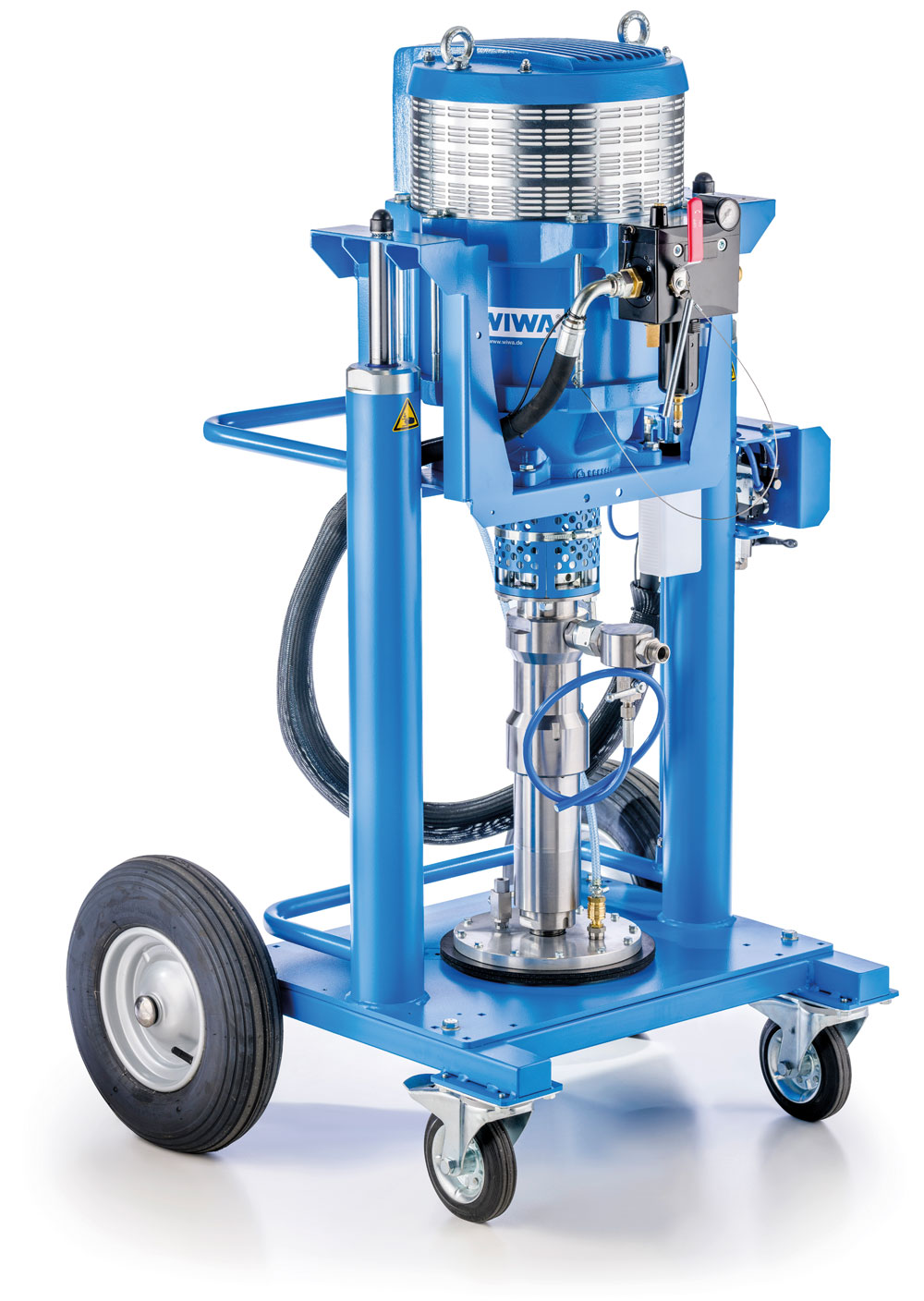

WIWA HERKULES GX PFP
- For small areas and repairs
- High availability of spare parts and accessories
- Commissioning and training at the customer's site or on site
Description
Fire and the associated heat development pose a considerable threat to people and materials.
Passive fire protection is primarily used to maintain the functionality of structures, pipelines and containers for a defined period of time, since at temperatures of approx. 550°C the critical core temperature is reached and structures are at risk of collapse. In the event of a fire, the flame retardant material foams up, thus limiting the temperature development in the respective critical range over time. This saves important time for rescue and evacuation measures.
Suitable accessories
Technical Data
WIWA HERKULES GX PFP
|
|
| Pressure ratio | 75:1 |
| Output per cycle | 275 ccm (9.2 fl.oz.) |
| Max. output (at 60 cycles/min): | 16.5 l/min (4.4 gallon/min) |
| Max. operating pressure | 450 bar (6,527 psi) |
| Order number | 0663691 |
B - On container, D - on tripod, F - on chassis, G - on rack, H - on lift truck,
GZ - On Rack with feed funnel, W - on wall mount, ASL - suction tube, DAS - Direct suction
Fields Of Application
Automotive
Fire protection
Apparatus and mechanical engineering
Steel Construction
Offshore industry
General Industry
Fire and the associated heat development pose a considerable threat to people and materials.
Passive fire protection is primarily used to maintain the functionality of structures, pipelines and containers for a defined period of time, since at temperatures of approx. 550°C the critical core temperature is reached and structures are at risk of collapse. In the event of a fire, the flame retardant material foams up, thus limiting the temperature development in the respective critical range over time. This saves important time for rescue and evacuation measures.
Suitable accessories
|
WIWA HERKULES GX PFP
|
|
| Pressure ratio | 75:1 |
| Output per cycle | 275 ccm (9.2 fl.oz.) |
| Max. output (at 60 cycles/min): | 16.5 l/min (4.4 gallon/min) |
| Max. operating pressure | 450 bar (6,527 psi) |
| Order number | 0663691 |
B - On container, D - on tripod, F - on chassis, G - on rack, H - on lift truck,
GZ - On Rack with feed funnel, W - on wall mount, ASL - suction tube, DAS - Direct suction
Fields Of Application
Automotive
Fire protection
Apparatus and mechanical engineering
Steel Construction
Offshore industry
General Industry
WIWA PROFIT
Pressure ratio:
10
-
33
:1
Output per cycle:
14
-
27 ccm
(0.5
-
0.9 fl.oz.)
WIWA PHOENIX GX
Pressure ratio:
18
-
65
:1
Output per cycle:
43
-
111 ccm
(1.4
-
3.7 fl.oz.)
WIWA PROFESSIONAL CLASSIC
Pressure ratio:
32
-
71
:1
Output per cycle:
138
-
306 ccm
(4.6
-
10.2 fl.oz.)
WIWA PROFESSIONAL GX
Pressure ratio:
27
-
63
:1
Output per cycle:
153
-
360 ccm
(5.1
-
12 fl.oz.)
WIWA HERKULES GX
Pressure ratio:
24
-
88
:1
Output per cycle:
153
-
550 ccm
(5.1
-
18.3 fl.oz.)
WIWA HERKULES HX
Pressure ratio:
1.7
-
3.4
:1
Output per cycle:
153
-
550 ccm
(5.1
-
18.3 fl.oz.)
WIWA EFFECTIVE
Pressure ratio:
33
:1
Output per cycle:
27 ccm
(0.9 fl.oz.)
WIWA PROFESSIONAL CLASSIC für Schlichte
Pressure ratio:
10
-
23
:1
Output per cycle:
72
-
153 ccm
(2.4
-
5.1 fl.oz.)
WIWA THICK FILM / MORTAR PUMP
Pressure ratio:
9
-
12
:1
Output per cycle:
410
-
600 ccm
(13.7
-
20 fl.oz.)
