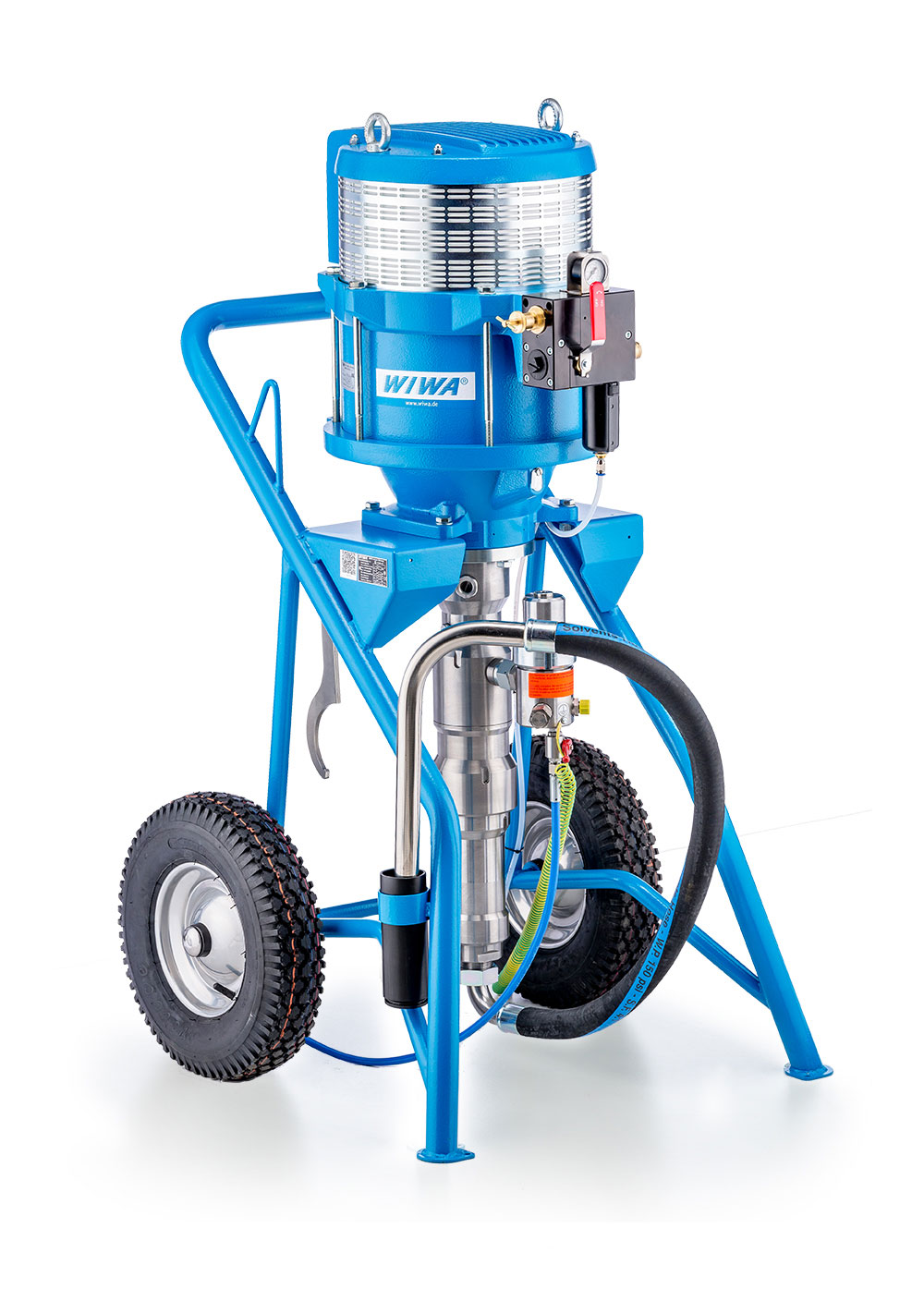

WIWA HERKULES GX

  • Suitable for the use of several spray guns simultaneously
  • Hose lengths of over 100 meters do not pose any problems
  • Particularly suitable for large-area and thick-film coatings with very high pressure ratios and enormous delivery rates
Brochure

Description

Convinces with above-average service life of all components.

With the new, oil-free, extremely quiet and "anti-icing" air motor, the WIWA HERKULES GX series is a dynamic and powerful addition to the airless range. Both units can be equipped with long spray hoses and multiple guns.

Suitable accessories

Technical Data

Model 270088
Version HERKULES 270 GX
Pressure ratio 88:1
Output per cycle 153 ccm (5.1 fl.oz.)
Max. output 28 l/min (7.4 gallon/min)
Max. inbound air pressure 5.5 bar (80 psi)
Max. operating pressure 484 bar (7,020 psi)
Order numbers
RS/F 0662617
RS/H 0660706
RS/W 0660593
Model 270071
Version HERKULES 270 GX
Pressure ratio 71:1
Output per cycle 189 ccm (6.3 fl.oz.)
Max. output 31 l/min (8.2 gallon/min)
Max. inbound air pressure 7 bar (102 psi)
Max. operating pressure 497 bar (7,208 psi)
Order numbers
RS/F 0662618
RS/H 0660707
RS/W 0660594
With feed funnel RS/F 0663817
Model 270049
Version HERKULES 270 GX
Pressure ratio 49:1
Output per cycle 275 ccm (9.2 fl.oz.)
Max. output 35 l/min (9.2 gallon/min)
Max. inbound air pressure 8 bar (116 psi)
Max. operating pressure 392 bar (5,685 psi)
Order numbers
RS/F 0662619
RS/H 0660708
RS/W 0660595
open system RS/F 0661885
Model 270037
Version HERKULES 270 GX
Pressure ratio 37:1
Output per cycle 360 ccm (12 fl.oz.)
Max. output 48 l/min (12.7 gallon/min)
Max. inbound air pressure 8 bar (116 psi)
Max. operating pressure 296 bar (4,293 psi)
Order numbers
RS/F 0662620
RS/H 0660709
RS/W 0660596
Model 270024
Version HERKULES 270 GX
Pressure ratio 24:1
Output per cycle 550 ccm (18.3 fl.oz.)
Max. output 33 l/min (8.7 gallon/min)
Max. inbound air pressure 8 bar (116 psi)
Max. operating pressure 192 bar (2,785 psi)
Order numbers
RS/F 0662621
RS/H 0660710
RS/W 0660597
Model 333075
Version WIWA HERKULES 333 GX
Pressure ratio 75:1
Output per cycle 275 ccm (9.2 fl.oz.)
Max. output 16.5 l/min (4.4 gallon/min)
Max. inbound air pressure 6.5 bar (94 psi)
Max. operating pressure 487 bar (7,063 psi)
Order numbers
RS/F 0663681
RS/W 0663684
RS/H 0663686
Model 333057
Version WIWA HERKULES 333 GX
Pressure ratio 57:1
Output per cycle 360 ccm (12 fl.oz.)
Max. output 21 l/min (5.5 gallon/min)
Max. inbound air pressure 7 bar (102 psi)
Max. operating pressure 399 bar (5,787 psi)
Order numbers
RS/F 0663682
RS/W 0663471
RS/H 0663470
Model 333037
Version WIWA HERKULES 333 GX
Pressure ratio 37:1
Output per cycle 550 ccm (18.3 fl.oz.)
Max. output 33 l/min (8.7 gallon/min)
Max. inbound air pressure 8 bar (116 psi)
Max. operating pressure 296 bar (4,293 psi)
Order numbers
RS/F 0663683
RS/W 0663685
RS/H 0663687
N - Normal steel galvanized, not stainless, R - stainless, RS - Stainless steel, rust and acid resistant,
B - On container, D - on tripod, F - on chassis, G - on rack, GZ - On Rack with feed funnel, W - on wall mount,
ASL - suction tube, DAS - Direct suction

Fields Of Application

Automotive

Fire protection

Insulation

Railcar construction

Mining

Building renovation

Chemical Industry

Apparatus and mechanical engineering

Steel Construction

Offshore industry

Wind power industry

Pipes and pipelines

Building and corrosion protection

Marine Industry

Conveyor and paint supply

General Industry

Tunnels

Materials

  • Abrasive materials
  • Flame retardant materials
  • Glass flake
  • Insulating and thick-film materials
  • Antifoulings
  • Cold bitumen
  • Materials with short fiber fillers
  • Low-solvent and solvent-free paints
  • Sprayable paints and varnishes
  • Two-component and tar epoxy paints (high viscosity and coarse pigmentation)
