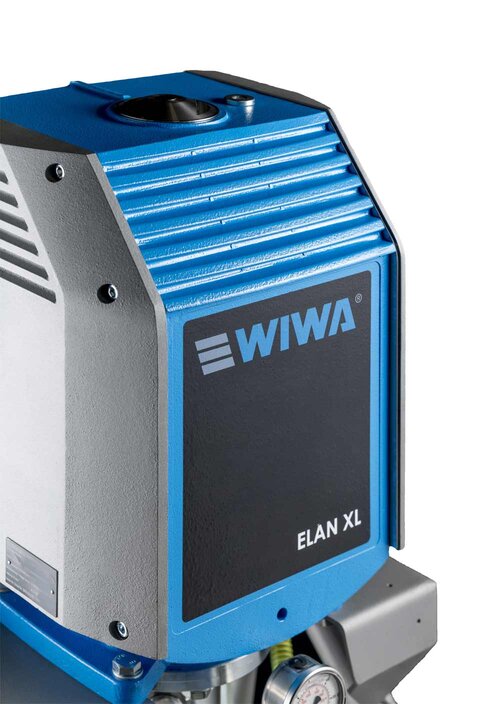

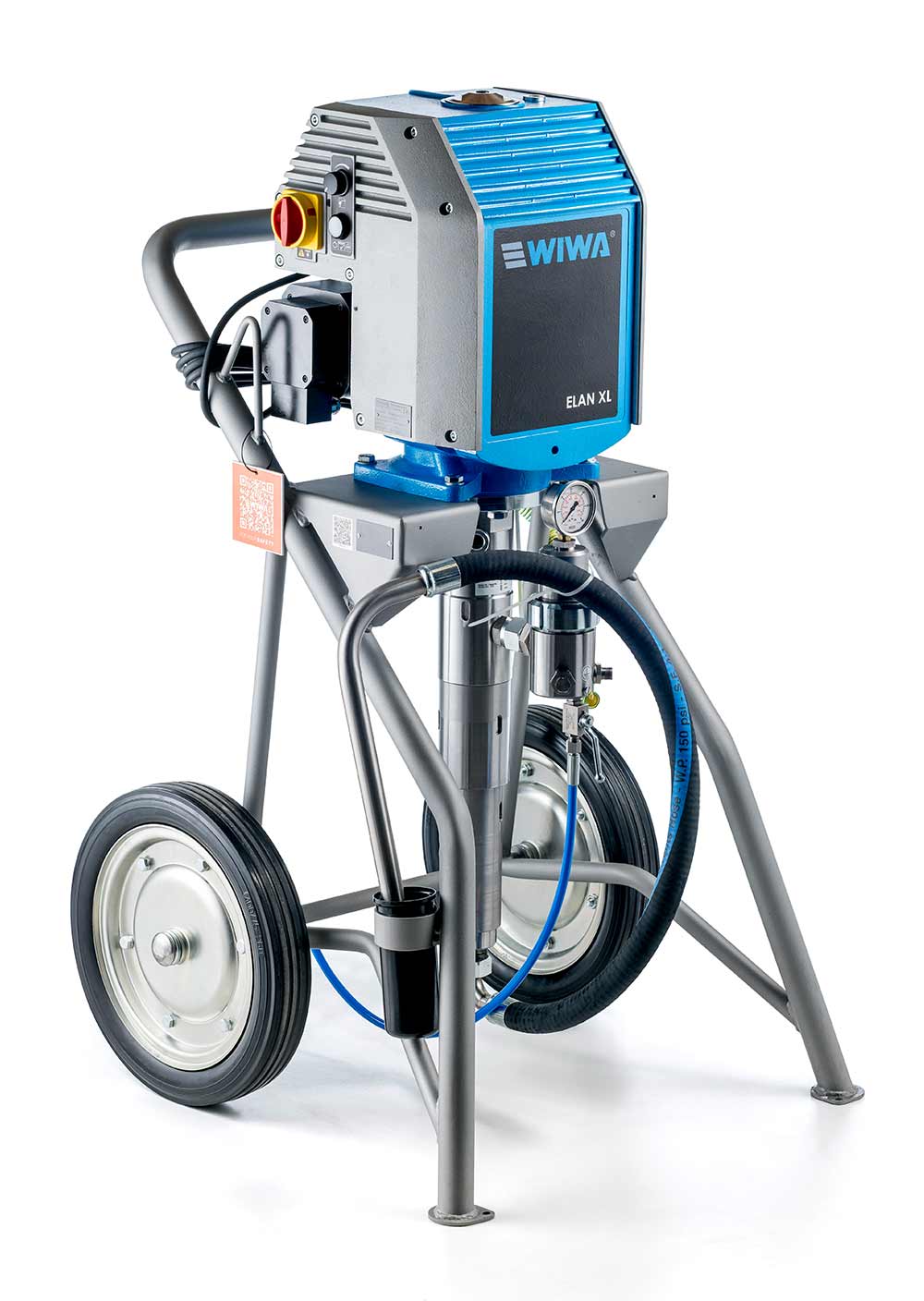

WIWA ELAN XL
- Environmentally conscious & energy efficient
- Powerful and whisper-quiet thanks to electric motor
- Modular system: Multiple configurations for greater flexibility in your workflow
Description
Electrify your work.
Proven WIWA performance now fully electric with the WIWA ELAN XL.
The modern electric drive enables precise control of pressure and flow. Thanks to the particularly large material passages and valves, even the application of highly viscous materials is no challenge and, thanks to the electric motor, is whisper-quiet. Whether with a hopper, different delivery volumes, or special connection variants: your customized solution is created from proven components.
Technical Data
Model
|
XL-153 RS |
| Output per cycle | 153 ccm (5.1 fl.oz.) |
| Max. output | 3.8 l/min (1 gallon/min) |
| Max. operating pressure | 470 bar (6,817 psi) |
| Order number | |
| RS/F/ASL | 0674877 |
|
Model
|
XL-189 RS |
| Output per cycle | 189 ccm (6.3 fl.oz.) |
| Max. output | 4.7 l/min (1.2 gallon/min) |
| Max. operating pressure | 380 bar (5,511 psi) |
| Order number | |
| RS/F/ASL | 0674878 |
|
Model
|
XL-275 RS |
| Output per cycle | 275 ccm (9.2 fl.oz.) |
| Max. output | 6.8 l/min (1.8 gallon/min) |
| Max. operating pressure | 260 bar (3,771 psi) |
| Order number | |
| RS/F/ASL | 0675039 |
B - On container, D - on tripod, F - on chassis, G - on rack, H - on lift truck,
GZ - On Rack with feed funnel, W - on wall mount, ASL - suction tube, DAS - Direct suction
Fields Of Application
Marine Industry
Steel Construction
Building and corrosion protection
Fire protection
General Industry
Electrify your work.
Proven WIWA performance now fully electric with the WIWA ELAN XL.
The modern electric drive enables precise control of pressure and flow. Thanks to the particularly large material passages and valves, even the application of highly viscous materials is no challenge and, thanks to the electric motor, is whisper-quiet. Whether with a hopper, different delivery volumes, or special connection variants: your customized solution is created from proven components.
|
Model
|
XL-153 RS |
| Output per cycle | 153 ccm (5.1 fl.oz.) |
| Max. output | 3.8 l/min (1 gallon/min) |
| Max. operating pressure | 470 bar (6,817 psi) |
| Order number | |
| RS/F/ASL | 0674877 |
|
Model
|
XL-189 RS |
| Output per cycle | 189 ccm (6.3 fl.oz.) |
| Max. output | 4.7 l/min (1.2 gallon/min) |
| Max. operating pressure | 380 bar (5,511 psi) |
| Order number | |
| RS/F/ASL | 0674878 |
|
Model
|
XL-275 RS |
| Output per cycle | 275 ccm (9.2 fl.oz.) |
| Max. output | 6.8 l/min (1.8 gallon/min) |
| Max. operating pressure | 260 bar (3,771 psi) |
| Order number | |
| RS/F/ASL | 0675039 |
B - On container, D - on tripod, F - on chassis, G - on rack, H - on lift truck,
GZ - On Rack with feed funnel, W - on wall mount, ASL - suction tube, DAS - Direct suction
