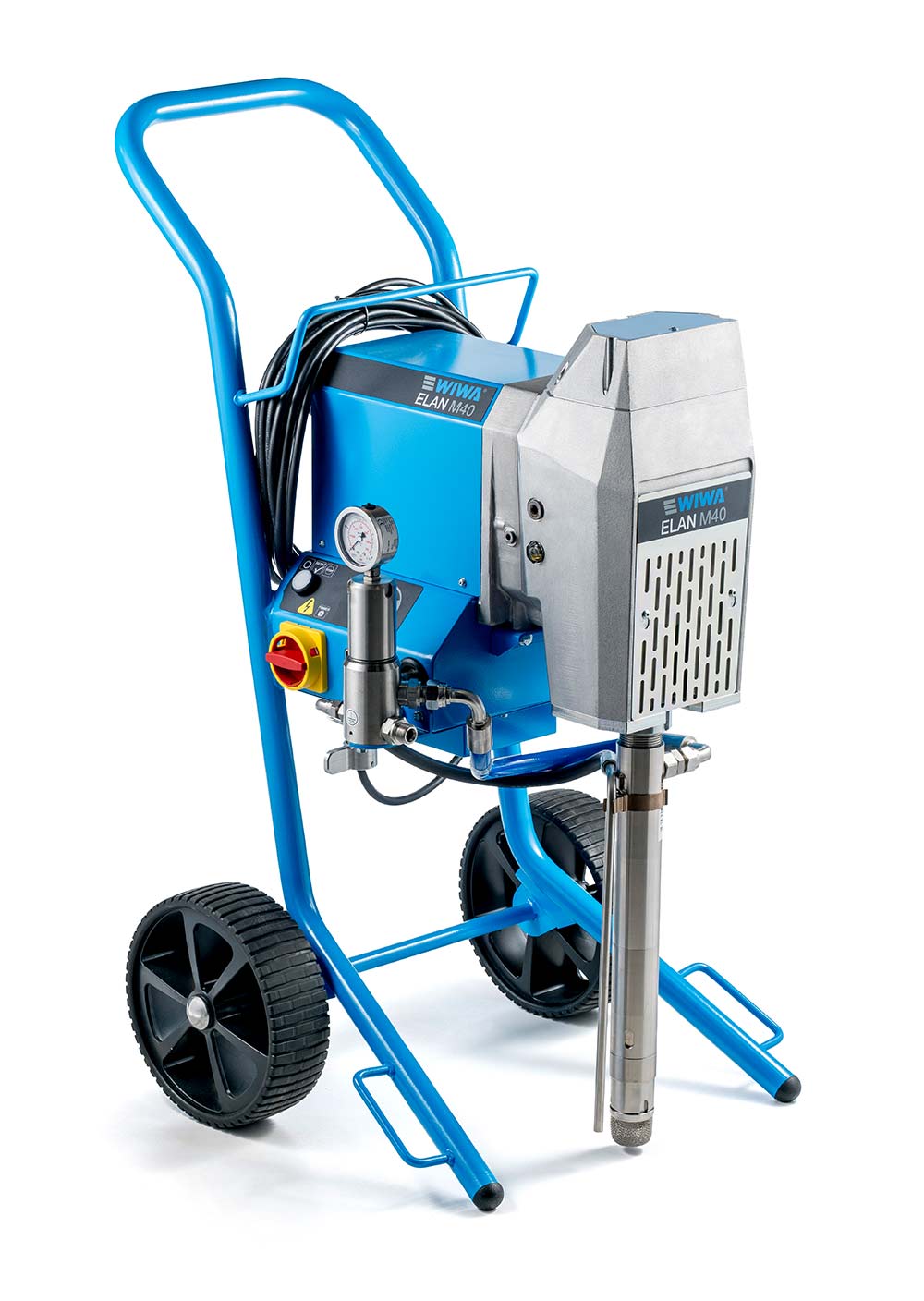

WIWA ELAN M
- Simple operation
- Durable piston design
- Environmentally conscious and energy efficient
Description
Electrifying, robust, flexible, groundbreaking.
The compact, high-performance WIWA ELAN M is ideal for construction sites and painting contractors, but also for industrial coatings, offering unbeatable flexibility and a robust design. The electric motor is brushless and has high torque and a very long service life. Thanks to the particularly large material passages and valves, even the application of higher-viscosity materials is no challenge.

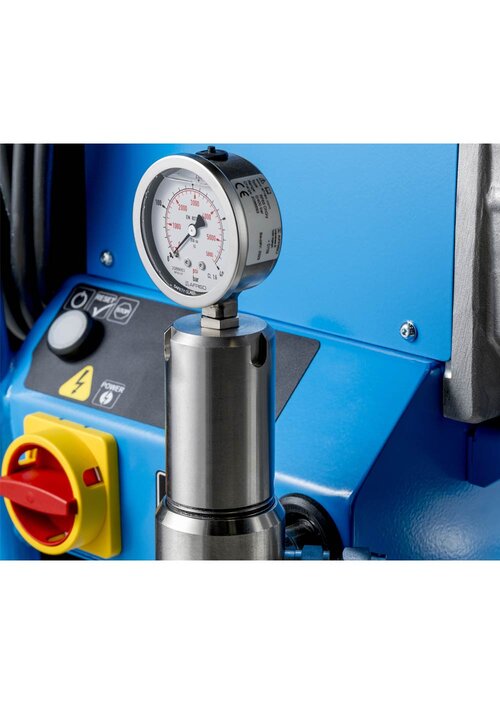

The WIWA ELAN M has an electronic pressure control system that regulates the motor speed and ensures constant spray pressure. This makes airless spraying possible even at low pressure ranges and reduces overspray.
No plastic, low maintenance, the usual high WIWA quality.
Electrical performance that impresses!
Technical Data
Model
|
M40 |
| Output per cycle | 40 ccm (1.3 fl.oz.) |
| Max. output | 8 l/min (2.1 gallon/min) |
| Max. operating pressure | 250 bar (3,626 psi) |
| Order number | |
| RS/F/DAS | 0671628 |
|
Model
|
M65 |
| Output per cycle | 65 ccm (2.2 fl.oz.) |
| Max. output | 11 l/min (2.9 gallon/min) |
| Max. operating pressure | 250 bar (3,626 psi) |
| Order number | |
| RS/F/DAS | 0671629 |
B - On container, D - on tripod, F - on chassis, G - on rack, H - on lift truck,
GZ - On Rack with feed funnel, W - on wall mount, ASL - suction tube, DAS - Direct suction
Fields Of Application
Building and civil engineering
Fire protection
Building and corrosion protection
Insulation
Steel Construction
General Industry
Marine Industry
Materials
- (Epoxy) fire protection materials
- Filler materials
- PVC and other sealing materials
- Dispersion adhesives
- Sprayable paints and varnishes
Electrifying, robust, flexible, groundbreaking.
The compact, high-performance WIWA ELAN M is ideal for construction sites and painting contractors, but also for industrial coatings, offering unbeatable flexibility and a robust design. The electric motor is brushless and has high torque and a very long service life. Thanks to the particularly large material passages and valves, even the application of higher-viscosity materials is no challenge.
The WIWA ELAN M has an electronic pressure control system that regulates the motor speed and ensures constant spray pressure. This makes airless spraying possible even at low pressure ranges and reduces overspray.
No plastic, low maintenance, the usual high WIWA quality.
Electrical performance that impresses!
|
Model
|
M40 |
| Output per cycle | 40 ccm (1.3 fl.oz.) |
| Max. output | 8 l/min (2.1 gallon/min) |
| Max. operating pressure | 250 bar (3,626 psi) |
| Order number | |
| RS/F/DAS | 0671628 |
|
Model
|
M65 |
| Output per cycle | 65 ccm (2.2 fl.oz.) |
| Max. output | 11 l/min (2.9 gallon/min) |
| Max. operating pressure | 250 bar (3,626 psi) |
| Order number | |
| RS/F/DAS | 0671629 |
B - On container, D - on tripod, F - on chassis, G - on rack, H - on lift truck,
GZ - On Rack with feed funnel, W - on wall mount, ASL - suction tube, DAS - Direct suction
Fields Of Application
Building and civil engineering
Fire protection
Building and corrosion protection
Insulation
Steel Construction
General Industry
Marine Industry
Materials
- (Epoxy) fire protection materials
- Filler materials
- PVC and other sealing materials
- Dispersion adhesives
- Sprayable paints and varnishes
