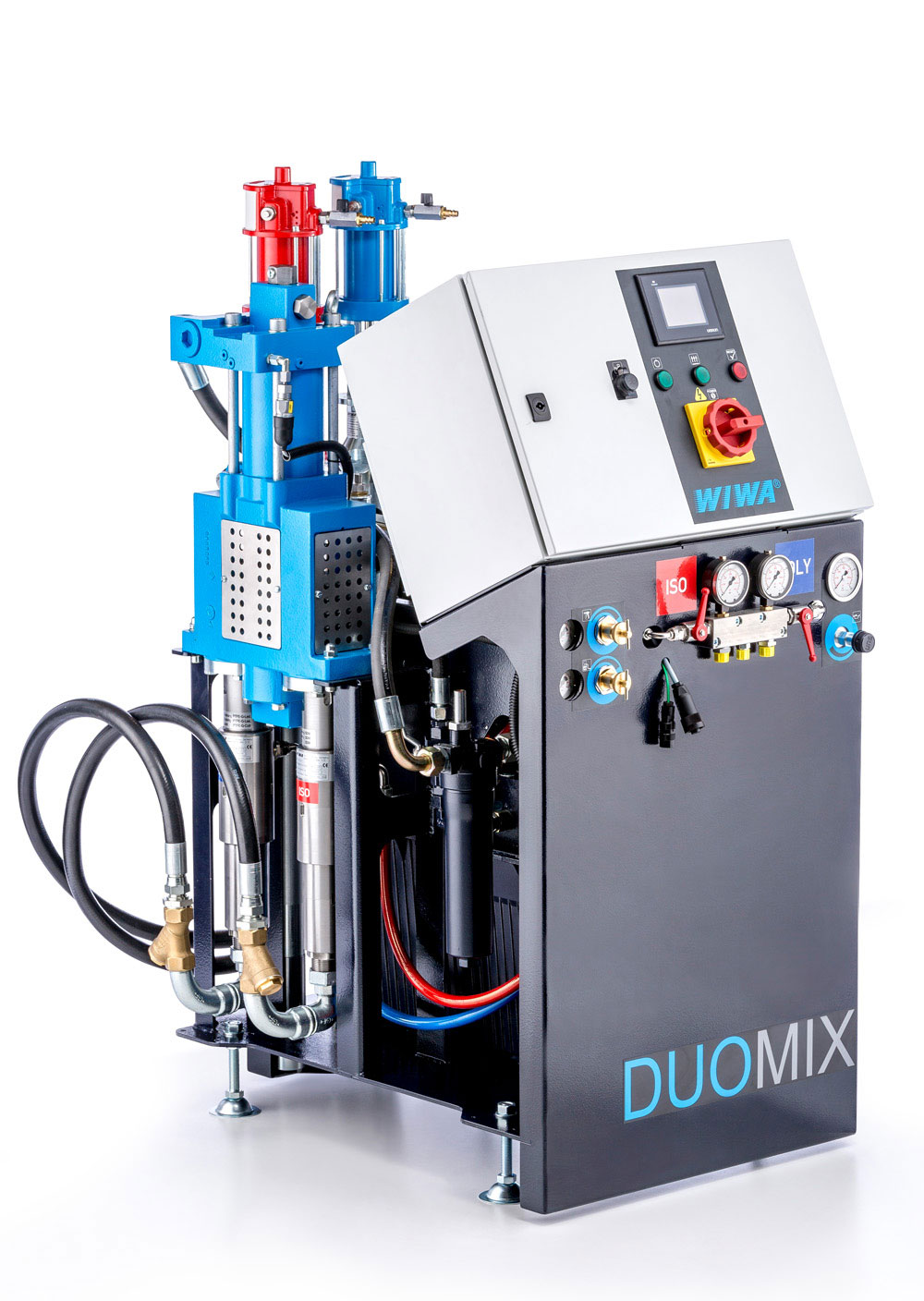

WIWA DUOMIX PU HX
- More than 200 different mixing ratios possible
- Equipped with an energy saving mode as standard
- Processes almost all polyurethane foams and fast reacting polyurea
Description
Protecting – Sealing – Insulating.
This hydraulic, compact, mobile and versatile unit processes almost all polyurethane foams and fast reacting polyurea.
The WIWA DUOMIX PU HX unit is equipped with an energy-saving mode as standard. This detects the system status during coating and automatically switches off consumers that are not currently required.
The new design of the dosing pumps allows a further improved material flow. Wear on dynamic parts has been significantly reduced as a result. Changing the mixing ratio is a matter of minutes thanks to simplified replacement of the material pumps. More than 200 different mixing ratios can be realized in this way.
The newly designed, exceptionally economical heater is based on proven and patented technology of gentle material heating. Only the quantity of the individual components just required is brought to processing temperature both efficiently and very gently in an extremely short time.
The WIWA DUOMIX PU HX is extremely quiet and allows the user to work comfortably and without pulsation. The control panel has been deliberately kept simple. The latest safety aspects of the EU machinery directives were already taken into account during the design to ensure the highest standard here as well.
Feed pumps can be easily transported and stored in the integrated holder. Two variants are available here - membrane pumps or our newly developed piston pumps.
The change from stand frame to cart can be realized within minutes by a conversion kit.
The WIWA DATALOGGER offers an ideal supplement to quality management. All processing parameters, setting values and the alarm history can be read out and saved customer-specifically with commercially available smartphones, tablets or PCs via Wi-Fi.
Suitable accessories
Technical Data
WIWA DUOMIX PU HX
|
|
| Output per cycle | 194 ccm (6.5 fl.oz.) |
| Max. output | 6.6 l/min (1.7 gallon/min) |
| Max. operating pressure | 250 bar (3,626 psi) |
| Max. power requirement | 23 kW |
B - On container, D - on tripod, F - on chassis, G - on rack, H - on lift truck,
GZ - On Rack with feed funnel, W - on wall mount, ASL - suction tube, DAS - Direct suction
Fields Of Application
Automotive
Fire protection
Insulation
Railcar construction
Mining
Building renovation
Chemical Industry
Apparatus and mechanical engineering
Steel Construction
Offshore industry
Wind power industry
Pipes and pipelines
Building and corrosion protection
General Industry
Tunnels
Building and civil engineering
Aircraft industry
