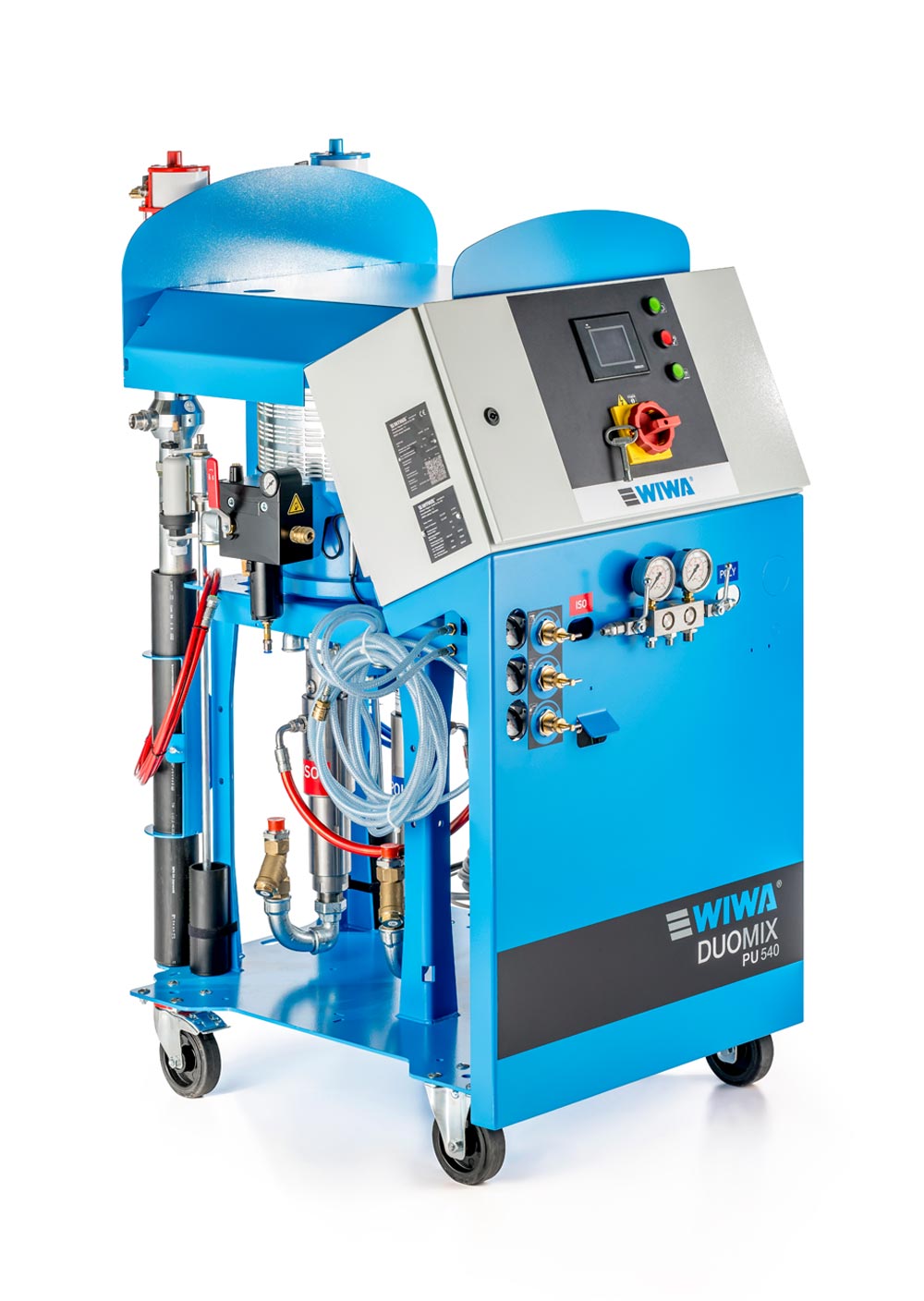

WIWA DUOMIX PU 540
- Optimal for high application rates
- More than 200 different mixing ratios possible
- Processes almost all polyurethane foams and fast reacting polyurea
Description
Another addition to the DUOMIX PU series.
The exceptionally economical heater is based on proven and patented technology of gentle material heating. Only the amount of individual components just required is brought to processing temperature both efficiently and very gently in an extremely short time.
The design of the dosing pumps allows a further improved material flow. This significantly reduces wear on dynamic parts. Changing the mixing ratio is a matter of minutes thanks to simplified replacement of the material pumps. More than 200 different mixing ratios can be realized in this way.
The clearly structured design of the WIWA DUOMIX PU 540 allows the user to work quickly and conveniently. The control panel has been deliberately kept simple.
The large output of the new WIWA DUOMIX PU 540 makes it ideal for high application rates.
The latest safety aspects of the EU machine directives were already taken into account in the design to ensure the highest standard here as well.
Feed pumps can be easily transported and stored in the integrated holder. Two variants are available here - membrane pumps or our developed piston pumps.
The change from stand frame to cart can be realized within minutes by a conversion kit.
The WIWA DATALOGGER offers an ideal supplement for quality management. All processing parameters, setting values and the alarm history can be read out and saved customer-specifically with commercially available smartphones, tablets or PCs via Wi-Fi.
Suitable accessories
Selection of project references
Technical Data
WIWA DUOMIX PU 540
|
|
| Output per cycle | 264 ccm (8.8 fl.oz.) |
| Max. inbound air pressure | 8 bar (116 psi) |
| Max. operating pressure | 248 bar (3,597 psi) |
| Max. power requirement | 16.5 kW |
B - On container, D - on tripod, F - on chassis, G - on rack, H - on lift truck,
GZ - On Rack with feed funnel, W - on wall mount, ASL - suction tube, DAS - Direct suction
Fields Of Application
Automotive
Fire protection
Insulation
Railcar construction
Mining
Building renovation
Chemical Industry
Apparatus and mechanical engineering
Steel Construction
Offshore industry
Wind power industry
Pipes and pipelines
Building and corrosion protection
General Industry
Tunnels
Building and civil engineering
Aircraft industry
Another addition to the DUOMIX PU series.
The exceptionally economical heater is based on proven and patented technology of gentle material heating. Only the amount of individual components just required is brought to processing temperature both efficiently and very gently in an extremely short time.
The design of the dosing pumps allows a further improved material flow. This significantly reduces wear on dynamic parts. Changing the mixing ratio is a matter of minutes thanks to simplified replacement of the material pumps. More than 200 different mixing ratios can be realized in this way.
The clearly structured design of the WIWA DUOMIX PU 540 allows the user to work quickly and conveniently. The control panel has been deliberately kept simple.
The large output of the new WIWA DUOMIX PU 540 makes it ideal for high application rates.
The latest safety aspects of the EU machine directives were already taken into account in the design to ensure the highest standard here as well.
Feed pumps can be easily transported and stored in the integrated holder. Two variants are available here - membrane pumps or our developed piston pumps.
The change from stand frame to cart can be realized within minutes by a conversion kit.
The WIWA DATALOGGER offers an ideal supplement for quality management. All processing parameters, setting values and the alarm history can be read out and saved customer-specifically with commercially available smartphones, tablets or PCs via Wi-Fi.
Suitable accessories
Selection of project references
|
WIWA DUOMIX PU 540
|
|
| Output per cycle | 264 ccm (8.8 fl.oz.) |
| Max. inbound air pressure | 8 bar (116 psi) |
| Max. operating pressure | 248 bar (3,597 psi) |
| Max. power requirement | 16.5 kW |
B - On container, D - on tripod, F - on chassis, G - on rack, H - on lift truck,
GZ - On Rack with feed funnel, W - on wall mount, ASL - suction tube, DAS - Direct suction
