WIWA DUOMIX 333 GX PFP
- Good quality and service at a fair price
- Simple and safe operation of the unit in use
- Individual system design possible due to modular system concept
Description
WIWA 2K coating systems of the high performance class.

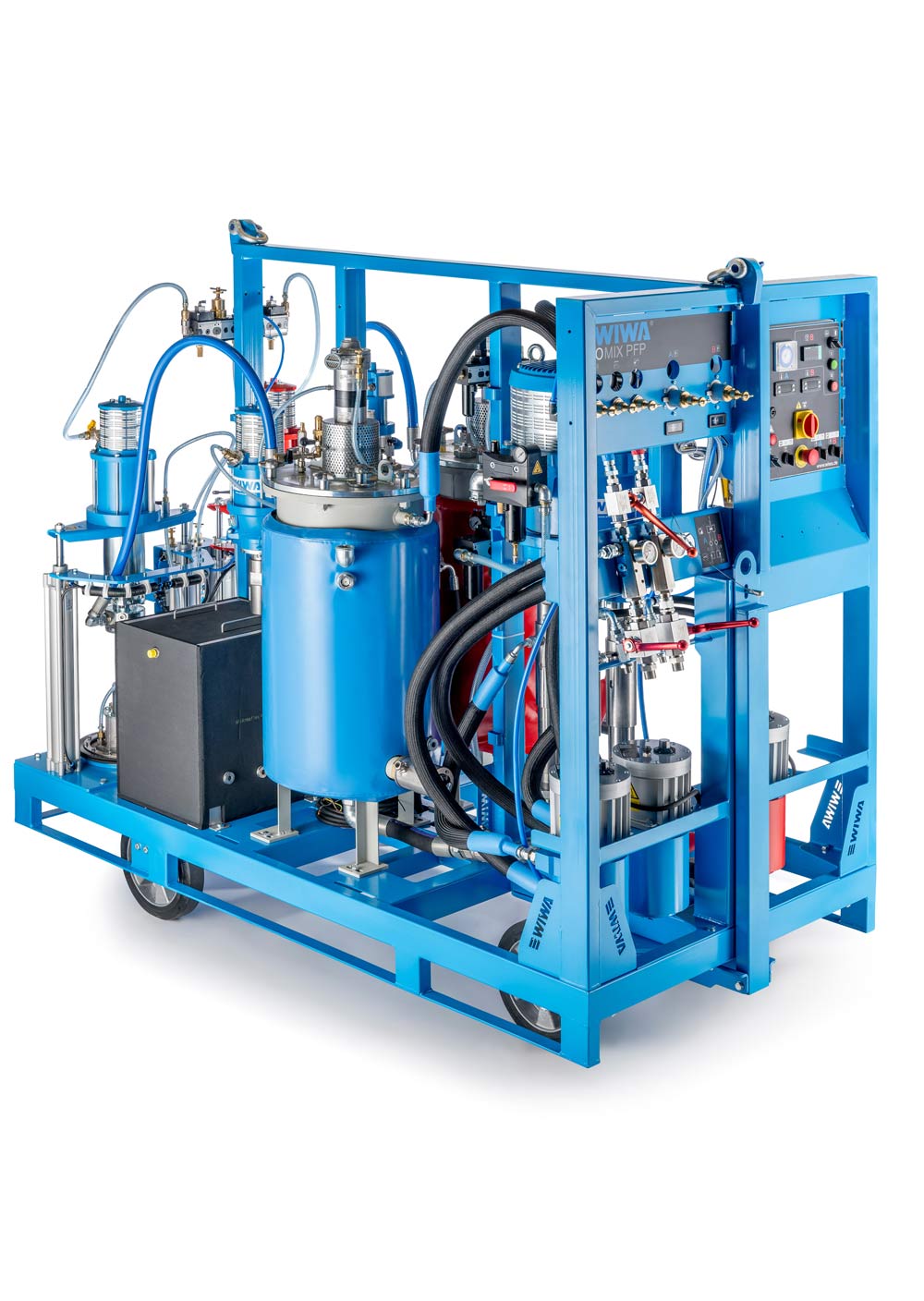

In close cooperation with leading paint manufacturers, WIWA has further developed and optimized its high-performance 2K and 3K application systems. The latest development stage is the smooth processing of an already proven intumescent material. Following successful tests, International Coatings Ltd. has issued equipment certification for the WIWA 2K unit 333 GX PFP.

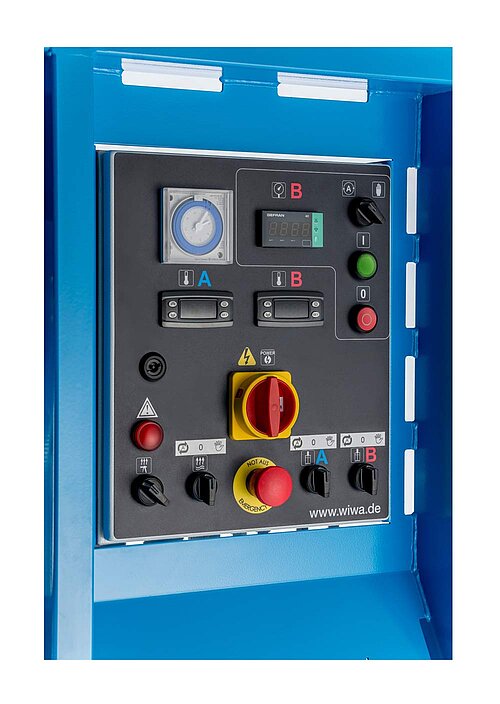

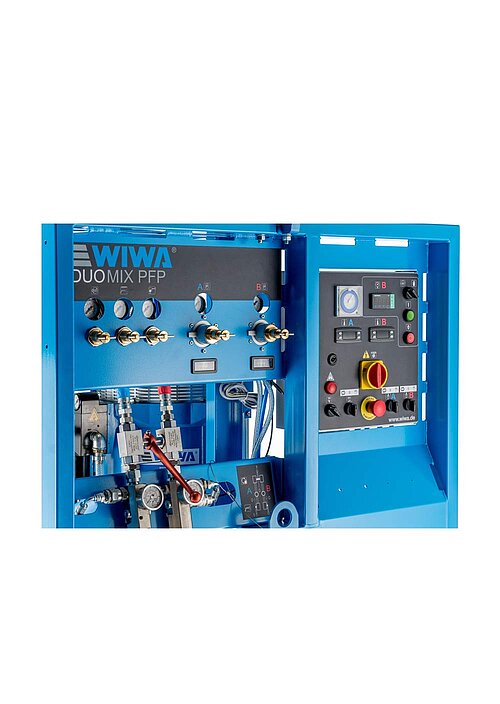

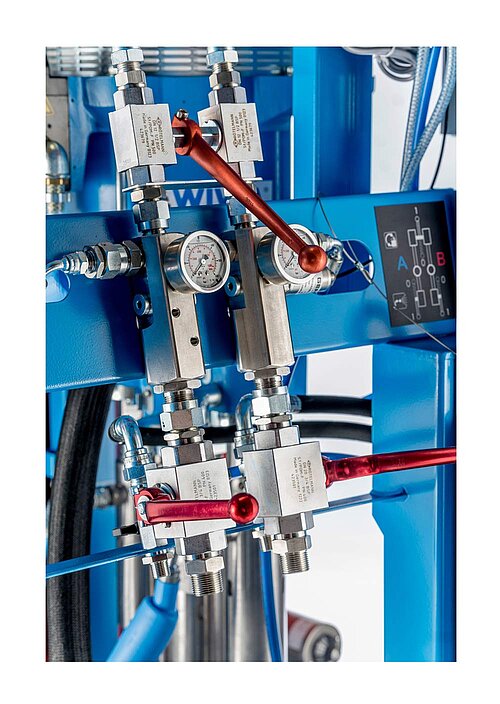

For use in Zone 1 explosion-proof areas, the unit is equipped with a forklift frame with mounting kit for a cart, directly heated pressure vessels as well as pneumatic agitators, pneumatic level monitoring by means of float switches and pneumatic monitoring of the contact pressure gauge.
Suitable accessories
Technical Data
Model
|
WIWA DUOMIX 333 GX PFP |
| Version | pneumatische Version |
| Pressure ratio | 66:1 |
| Output per cycle | 306 ccm (10.2 fl.oz.) |
| Max. output (at 60 cycles/min): | 18.4 l/min (4.9 gallon/min) |
| Max. operating pressure | 429 bar (6,222 psi) |
| Order number | 0672375 |
|
Model
|
WIWA DUOMIX 333 GX PFP |
| Version | pneumatische Version |
| Pressure ratio | 58.34:1 |
| Output per cycle | 345 ccm (11.5 fl.oz.) |
| Max. output (at 60 cycles/min): | 20.7 l/min (5.5 gallon/min) |
| Max. operating pressure | 408 bar (5,918 psi) |
|
Model
|
WIWA DUOMIX 333 GX PFP |
| Version | pneumatische Version |
| Pressure ratio | 61:1 |
| Output per cycle | 329 ccm (11 fl.oz.) |
| Max. output (at 60 cycles/min): | 19.7 l/min (5.2 gallon/min) |
| Max. operating pressure | 427 bar (6,193 psi) |
| Order number | 0671660 |
|
Model
|
WIWA DUOMIX 333 GX PFP ATEX |
| Version | pneumatische Version |
| Pressure ratio | 61:1 |
| Output per cycle | 329 ccm (11 fl.oz.) |
| Max. output (at 60 cycles/min): | 19.7 l/min (5.2 gallon/min) |
| Max. operating pressure | 427 bar (6,193 psi) |
| Order number | |
| ATEX Zone 1 | 0672738 |
|
Model
|
WIWA DUOMIX 333 GX PFP ATEX |
| Version | pneumatische Version |
| Pressure ratio | 66:1 |
| Output per cycle | 306 ccm (10.2 fl.oz.) |
| Max. output (at 60 cycles/min): | 18.4 l/min (4.9 gallon/min) |
| Max. operating pressure | 429 bar (6,222 psi) |
| Order number | |
| ATEX Zone 1 | 0672630 |
B - On container, D - on tripod, F - on chassis, G - on rack, H - on lift truck,
GZ - On Rack with feed funnel, W - on wall mount, ASL - suction tube, DAS - Direct suction
Fields Of Application
Automotive
Fire protection
Insulation
Steel Construction
Offshore industry
Building and corrosion protection
General Industry
WIWA 2K coating systems of the high performance class.
In close cooperation with leading paint manufacturers, WIWA has further developed and optimized its high-performance 2K and 3K application systems. The latest development stage is the smooth processing of an already proven intumescent material. Following successful tests, International Coatings Ltd. has issued equipment certification for the WIWA 2K unit 333 GX PFP.
For use in Zone 1 explosion-proof areas, the unit is equipped with a forklift frame with mounting kit for a cart, directly heated pressure vessels as well as pneumatic agitators, pneumatic level monitoring by means of float switches and pneumatic monitoring of the contact pressure gauge.
Suitable accessories
|
Model
|
WIWA DUOMIX 333 GX PFP |
| Version | pneumatische Version |
| Pressure ratio | 66:1 |
| Output per cycle | 306 ccm (10.2 fl.oz.) |
| Max. output (at 60 cycles/min): | 18.4 l/min (4.9 gallon/min) |
| Max. operating pressure | 429 bar (6,222 psi) |
| Order number | 0672375 |
|
Model
|
WIWA DUOMIX 333 GX PFP |
| Version | pneumatische Version |
| Pressure ratio | 58.34:1 |
| Output per cycle | 345 ccm (11.5 fl.oz.) |
| Max. output (at 60 cycles/min): | 20.7 l/min (5.5 gallon/min) |
| Max. operating pressure | 408 bar (5,918 psi) |
|
Model
|
WIWA DUOMIX 333 GX PFP |
| Version | pneumatische Version |
| Pressure ratio | 61:1 |
| Output per cycle | 329 ccm (11 fl.oz.) |
| Max. output (at 60 cycles/min): | 19.7 l/min (5.2 gallon/min) |
| Max. operating pressure | 427 bar (6,193 psi) |
| Order number | 0671660 |
|
Model
|
WIWA DUOMIX 333 GX PFP ATEX |
| Version | pneumatische Version |
| Pressure ratio | 61:1 |
| Output per cycle | 329 ccm (11 fl.oz.) |
| Max. output (at 60 cycles/min): | 19.7 l/min (5.2 gallon/min) |
| Max. operating pressure | 427 bar (6,193 psi) |
| Order number | |
| ATEX Zone 1 | 0672738 |
|
Model
|
WIWA DUOMIX 333 GX PFP ATEX |
| Version | pneumatische Version |
| Pressure ratio | 66:1 |
| Output per cycle | 306 ccm (10.2 fl.oz.) |
| Max. output (at 60 cycles/min): | 18.4 l/min (4.9 gallon/min) |
| Max. operating pressure | 429 bar (6,222 psi) |
| Order number | |
| ATEX Zone 1 | 0672630 |
B - On container, D - on tripod, F - on chassis, G - on rack, H - on lift truck,
GZ - On Rack with feed funnel, W - on wall mount, ASL - suction tube, DAS - Direct suction
Fields Of Application
Automotive
Fire protection
Insulation
Steel Construction
Offshore industry
Building and corrosion protection
General Industry
