Description
Little space on the construction site? No problem!

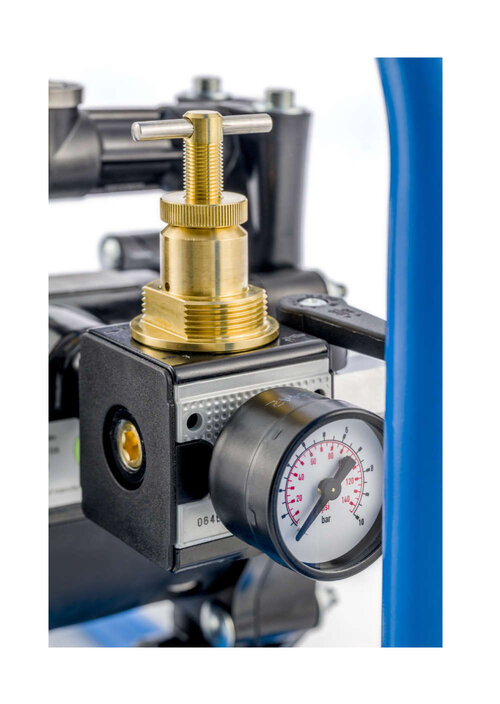

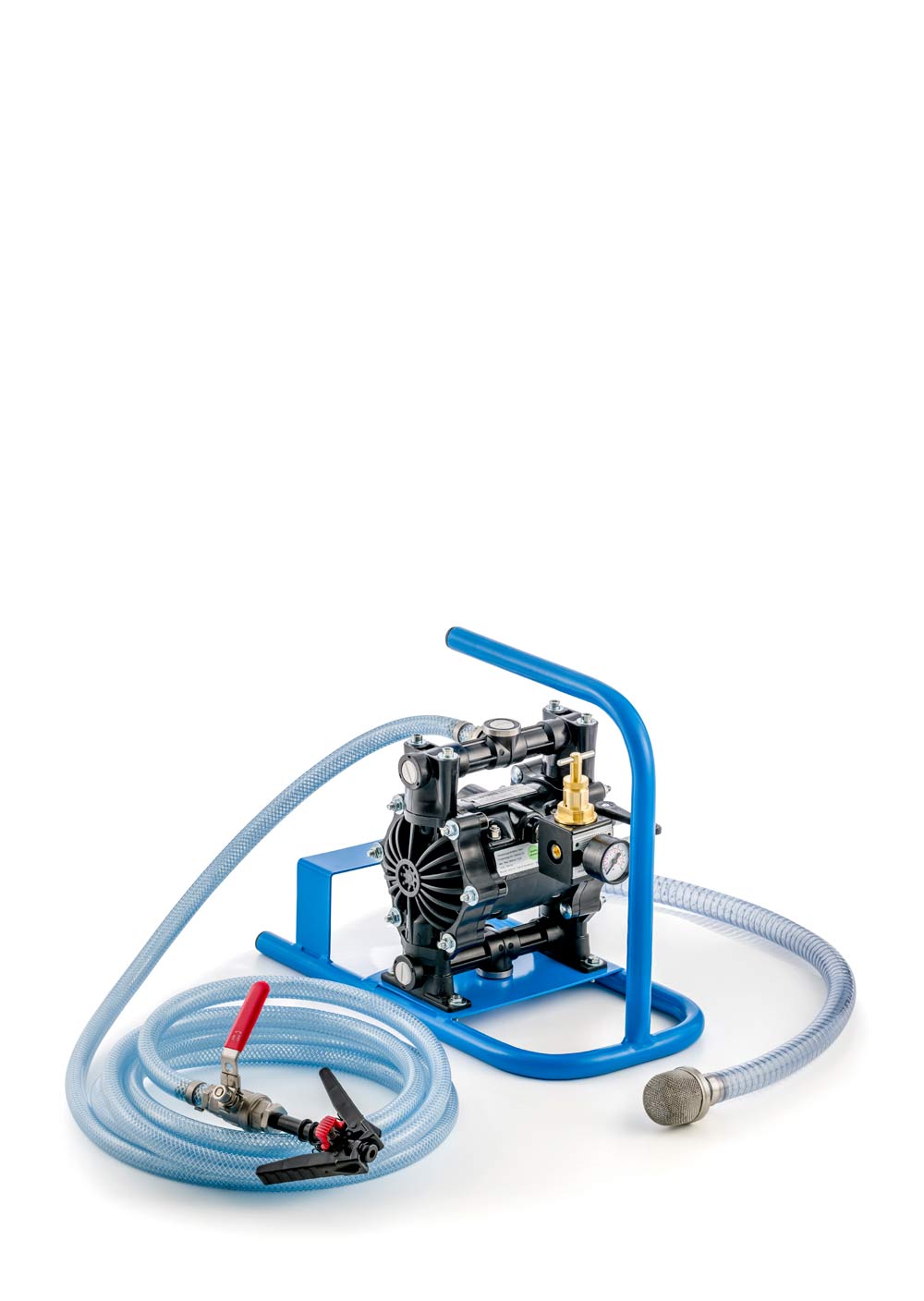

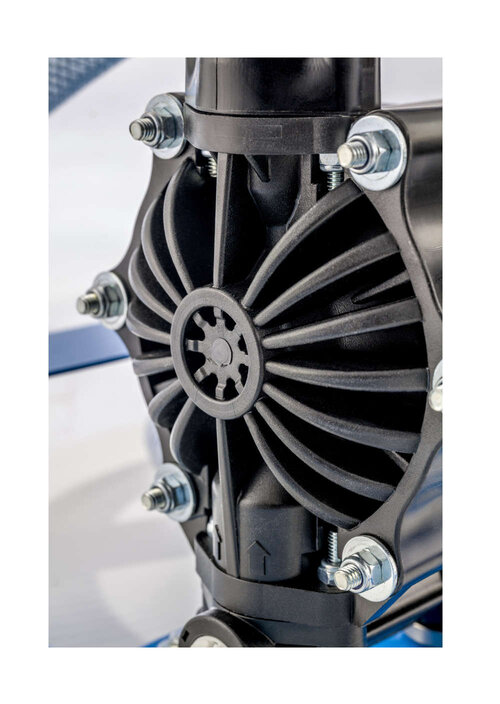

The WIWA INJECT ND 1 is an pneumatically operated diaphragm pump for low-pressure applications and is particularly suitable for processing suspensions. The self-priming device is flexibly adjustable, equipped with a compressed air regulator, a 1m suction line with strainer and a 5m material hose. Positive features include the low air consumption, the pressure limitation and the compact size, with which you will not feel crowded even on small construction sites.
Suitable accessories
Selection of project references
Technical Data
Model
|
INJECT ND 1 |
| Pressure ratio | 1:1 |
| Max. output | 25 l/min (6.6 gallon/min) |
| Max. inbound air pressure | 8 bar (116 psi) |
| Max. operating pressure | 8 bar (116 psi) |
| Order number | |
| G | 0671622 |
B - On container, D - on tripod, F - on chassis, G - on rack, H - on lift truck,
GZ - On Rack with feed funnel, W - on wall mount, ASL - suction tube, DAS - Direct suction
Fields Of Application
Mining
Building renovation
Pipes and pipelines
Building and corrosion protection
Tunnels
Building and civil engineering
Materials
- Suspensions
Little space on the construction site? No problem!
The WIWA INJECT ND 1 is an pneumatically operated diaphragm pump for low-pressure applications and is particularly suitable for processing suspensions. The self-priming device is flexibly adjustable, equipped with a compressed air regulator, a 1m suction line with strainer and a 5m material hose. Positive features include the low air consumption, the pressure limitation and the compact size, with which you will not feel crowded even on small construction sites.
Suitable accessories
Selection of project references
|
Model
|
INJECT ND 1 |
| Pressure ratio | 1:1 |
| Max. output | 25 l/min (6.6 gallon/min) |
| Max. inbound air pressure | 8 bar (116 psi) |
| Max. operating pressure | 8 bar (116 psi) |
| Order number | |
| G | 0671622 |
B - On container, D - on tripod, F - on chassis, G - on rack, H - on lift truck,
GZ - On Rack with feed funnel, W - on wall mount, ASL - suction tube, DAS - Direct suction
Fields Of Application
Mining
Building renovation
Pipes and pipelines
Building and corrosion protection
Tunnels
Building and civil engineering
Materials
- Suspensions
