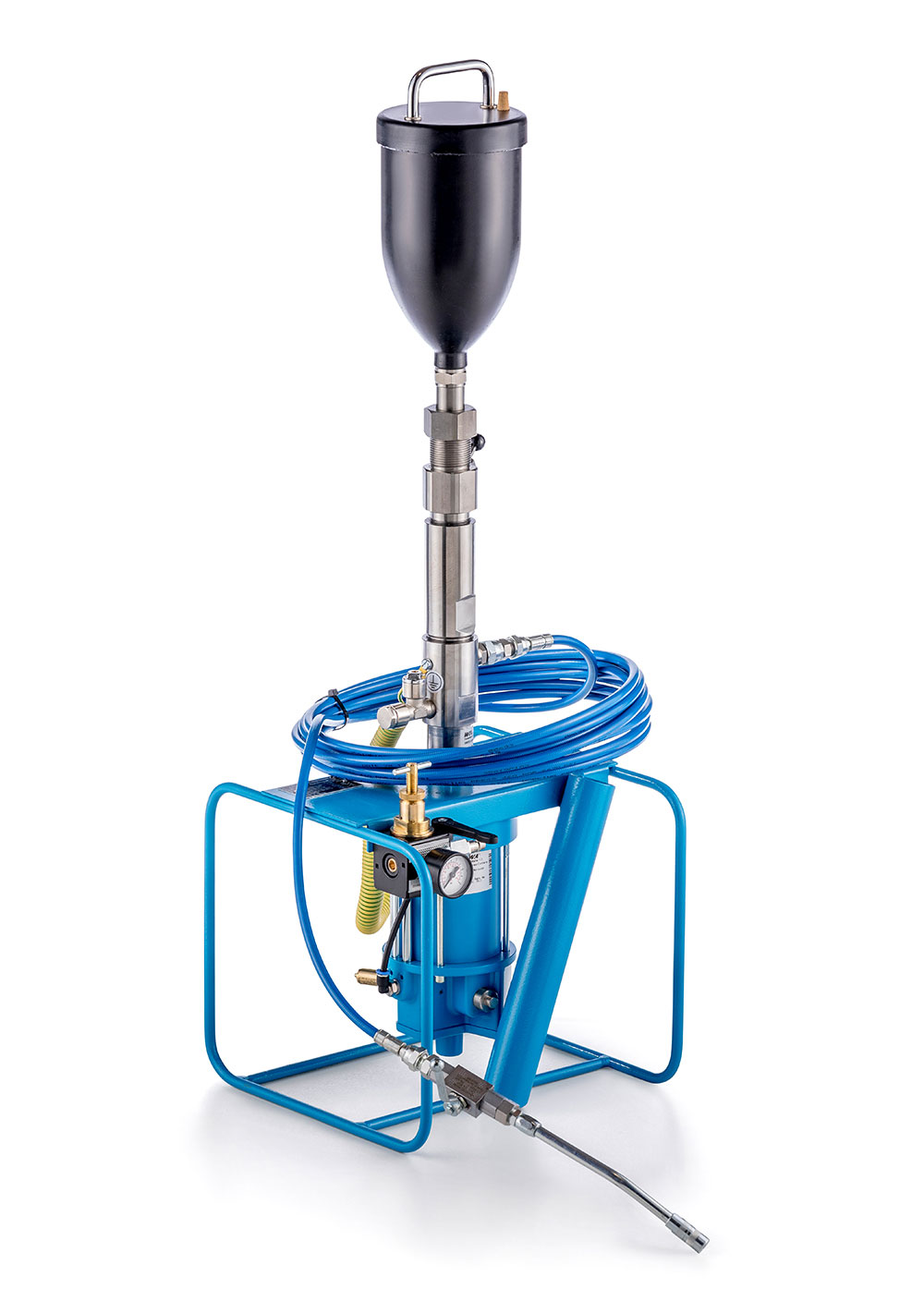

WIWA INJECT HD 3
- Easy to use and transport
- The injection pressure is continuously adjustable
- Can be used in the ATEX area thanks to pneumatic drive
Description
The new dimension for injection and pressure grouting tasks
The HD 3 injection equipment is particularly suitable for injecting and grouting low-viscosity epoxy or polyurethane resins and meets the requirements of the ZTV Riss.
Suitable accessories
Technical Data
Model
|
INJECT HD 3 |
| Pressure ratio | 33:1 |
| Output per cycle | 27 ccm (0.9 fl.oz.) |
| Max. inbound air pressure | 8 bar (116 psi) |
| Max. operating pressure | 264 bar (3,829 psi) |
| Order number | 0669680 |
Frame: B On container, D on tripod, F on chassis, G on rack, H on lift truck, GZ On Rack with feed funnel, W on wall mount
Feed: ASL suction tube, DAS Direct suction, eM External mixer with intermediate adapter
Fields Of Application
Mining
Building renovation
Pipes and pipelines
Building and corrosion protection
Tunnels
Building and civil engineering
Materials
- Polyurethane injection foam resins
- Polyurethane Combi Injection Foam Resins
- Polyurethane Combi Resins
- Polyurethane injection resins
- Epoxy injection resins
- Plural component injection materials with longer pot life
The new dimension for injection and pressure grouting tasks
The HD 3 injection equipment is particularly suitable for injecting and grouting low-viscosity epoxy or polyurethane resins and meets the requirements of the ZTV Riss.
Suitable accessories
|
Model
|
INJECT HD 3 |
| Pressure ratio | 33:1 |
| Output per cycle | 27 ccm (0.9 fl.oz.) |
| Max. inbound air pressure | 8 bar (116 psi) |
| Max. operating pressure | 264 bar (3,829 psi) |
| Order number | 0669680 |
Frame: B On container, D on tripod, F on chassis, G on rack, H on lift truck, GZ On Rack with feed funnel, W on wall mount
Feed: ASL suction tube, DAS Direct suction, eM External mixer with intermediate adapter
Fields Of Application
Mining
Building renovation
Pipes and pipelines
Building and corrosion protection
Tunnels
Building and civil engineering
Materials
- Polyurethane injection foam resins
- Polyurethane Combi Injection Foam Resins
- Polyurethane Combi Resins
- Polyurethane injection resins
- Epoxy injection resins
- Plural component injection materials with longer pot life
