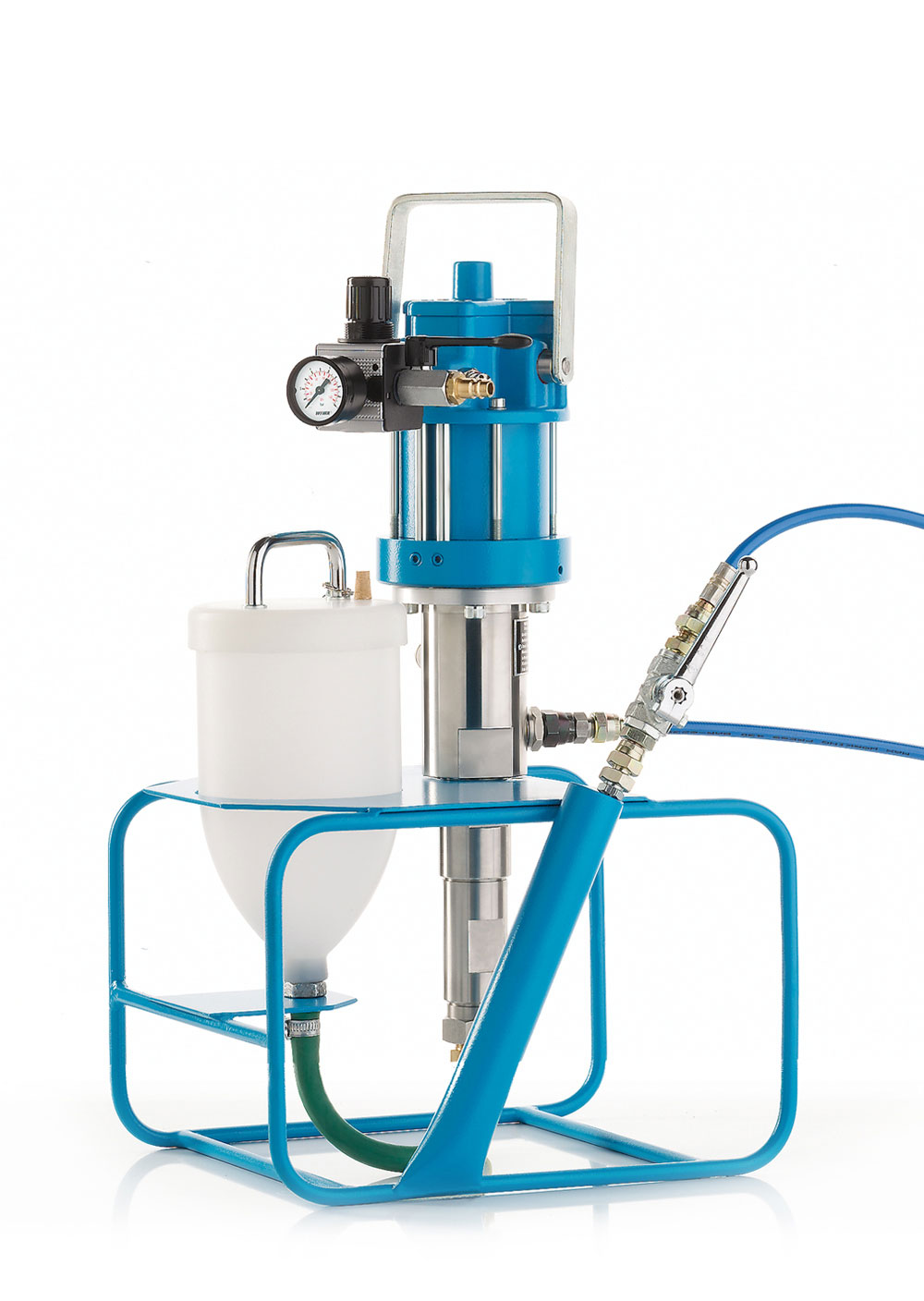

WIWA INJECT HD 1
- Easy to operate and transport
- The injection pressure is infinitely adjustable
- Compact, portable and powerful injection equipment with pneumatic drive.
Description
The new dimension for injection and pressure grouting tasks.
The injection units HD 1 are particularly suitable for the injection and pressure grouting of low viscosity epoxy or polyurethane resins and meet the requirements of the Supplementary Technical Conditions for Cracks.
Suitable accessories
Technical Data
Order number
|
0644426 |
| Pressure ratio | 33:1 |
| Output per cycle | 14 ccm (0.5 fl.oz.) |
| Max. inbound air pressure | 8 bar (116 psi) |
| Max. operating pressure | 264 bar (3,829 psi) |
B - On container, D - on tripod, F - on chassis, G - on rack, H - on lift truck,
GZ - On Rack with feed funnel, W - on wall mount, ASL - suction tube, DAS - Direct suction
Fields Of Application
Mining
Building renovation
Pipes and pipelines
Building and corrosion protection
Tunnels
Building and civil engineering
Materials
- Polyurethane injection foam resins
- Polyurethane Combi Injection Foam Resins
- Polyurethane Combi Resins
- Polyurethane injection resins
- Epoxy injection resins
- Plural component injection materials with longer pot life
The new dimension for injection and pressure grouting tasks.
The injection units HD 1 are particularly suitable for the injection and pressure grouting of low viscosity epoxy or polyurethane resins and meet the requirements of the Supplementary Technical Conditions for Cracks.
Suitable accessories
|
Order number
|
0644426 |
| Pressure ratio | 33:1 |
| Output per cycle | 14 ccm (0.5 fl.oz.) |
| Max. inbound air pressure | 8 bar (116 psi) |
| Max. operating pressure | 264 bar (3,829 psi) |
B - On container, D - on tripod, F - on chassis, G - on rack, H - on lift truck,
GZ - On Rack with feed funnel, W - on wall mount, ASL - suction tube, DAS - Direct suction
Fields Of Application
Mining
Building renovation
Pipes and pipelines
Building and corrosion protection
Tunnels
Building and civil engineering
Materials
- Polyurethane injection foam resins
- Polyurethane Combi Injection Foam Resins
- Polyurethane Combi Resins
- Polyurethane injection resins
- Epoxy injection resins
- Plural component injection materials with longer pot life
WIWA INJECT ND 1
Pressure ratio:
1
:1
WIWA INJECT HD 2
Pressure ratio:
33
:1
Output per cycle:
14 ccm
(0.5 fl.oz.)
WIWA INJECT HD 3
Pressure ratio:
33
:1
Output per cycle:
27 ccm
(0.9 fl.oz.)
WIWA INJECT HD 4
Pressure ratio:
30
:1
Output per cycle:
43 ccm
(1.4 fl.oz.)
WIWA INJECT HD 5
Pressure ratio:
32
:1
Output per cycle:
72 ccm
(2.4 fl.oz.)
