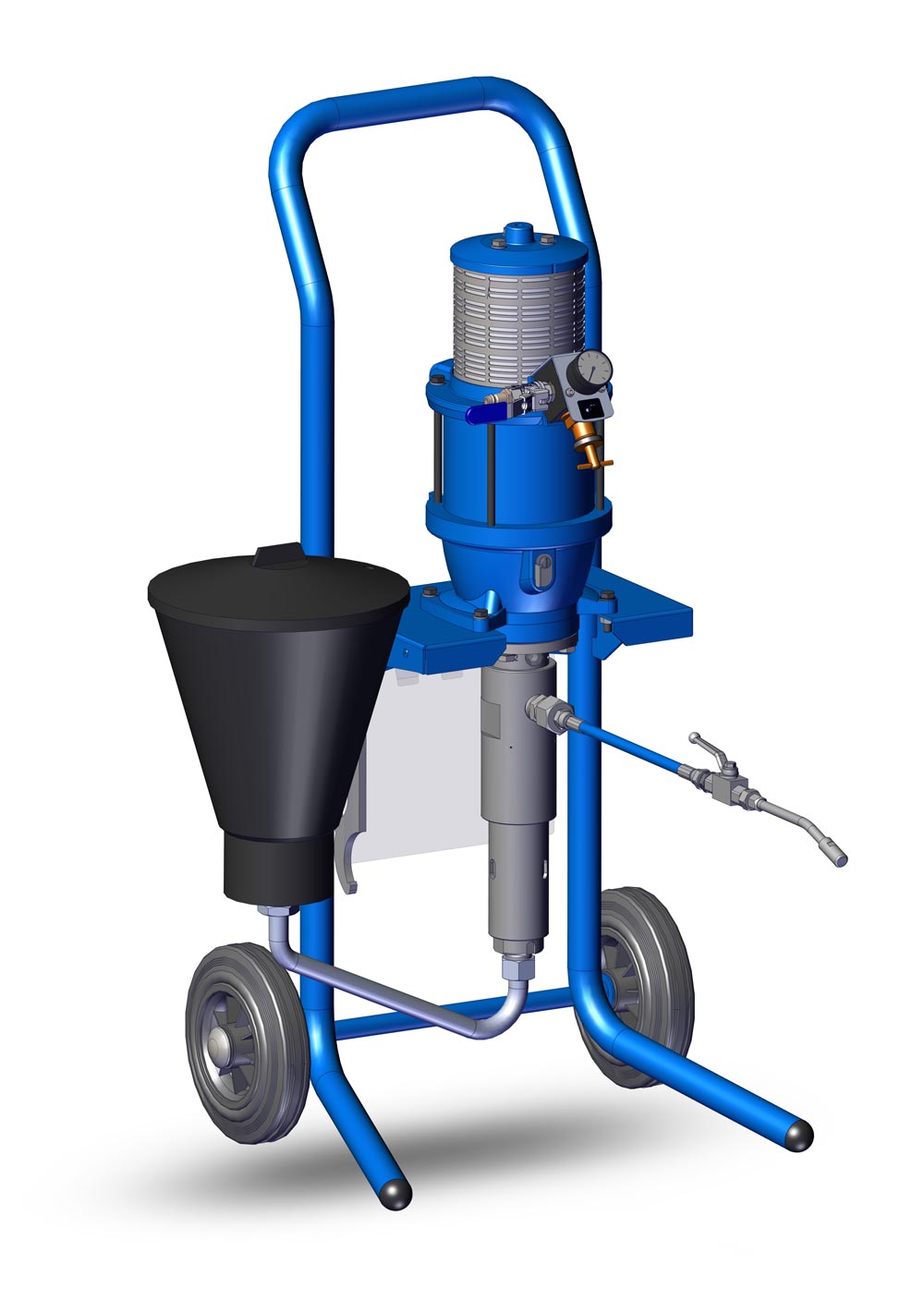

WIWA INJECT HD 5
- Also suitable for viscous materials
- Easy operation and maintenance of the unit
- Fast start-up of the pump with very low air input
Description
Easy handling.
The WIWA INJECT HD 4 and HD 5 are pneumatic 1K piston pumps characterized by large output and large valves. The spring-loaded packings make them particularly low-wear. The models are available on request in direct suction, suction line, hopper as well as with connection to a large container.
Suitable accessories
Technical Data
Model
|
INJECT HD 5 |
| Pressure ratio | 32:1 |
| Output per cycle | 72 ccm (2.4 fl.oz.) |
| Max. inbound air pressure | 8 bar (116 psi) |
| Max. operating pressure | 256 bar (3,713 psi) |
| Order numbers | |
| GZ | 0669225 |
| ASL | 0669224 |
Frame: B On container, D on tripod, F on chassis, G on rack, H on lift truck, GZ On Rack with feed funnel, W on wall mount
Feed: ASL suction tube, DAS Direct suction, eM External mixer with intermediate adapter
Fields Of Application
Mining
Building renovation
Pipes and pipelines
Building and corrosion protection
Tunnels
Building and civil engineering
Materials
- Polyurethane injection foam resins
- Polyurethane Combi Injection Foam Resins
- Polyurethane Combi Resins
- Polyurethane injection resins
- Epoxy injection resins
- Plural component injection materials with longer pot life
Easy handling.
The WIWA INJECT HD 4 and HD 5 are pneumatic 1K piston pumps characterized by large output and large valves. The spring-loaded packings make them particularly low-wear. The models are available on request in direct suction, suction line, hopper as well as with connection to a large container.
Suitable accessories
|
Model
|
INJECT HD 5 |
| Pressure ratio | 32:1 |
| Output per cycle | 72 ccm (2.4 fl.oz.) |
| Max. inbound air pressure | 8 bar (116 psi) |
| Max. operating pressure | 256 bar (3,713 psi) |
| Order numbers | |
| GZ | 0669225 |
| ASL | 0669224 |
Frame: B On container, D on tripod, F on chassis, G on rack, H on lift truck, GZ On Rack with feed funnel, W on wall mount
Feed: ASL suction tube, DAS Direct suction, eM External mixer with intermediate adapter
Fields Of Application
Mining
Building renovation
Pipes and pipelines
Building and corrosion protection
Tunnels
Building and civil engineering
Materials
- Polyurethane injection foam resins
- Polyurethane Combi Injection Foam Resins
- Polyurethane Combi Resins
- Polyurethane injection resins
- Epoxy injection resins
- Plural component injection materials with longer pot life
