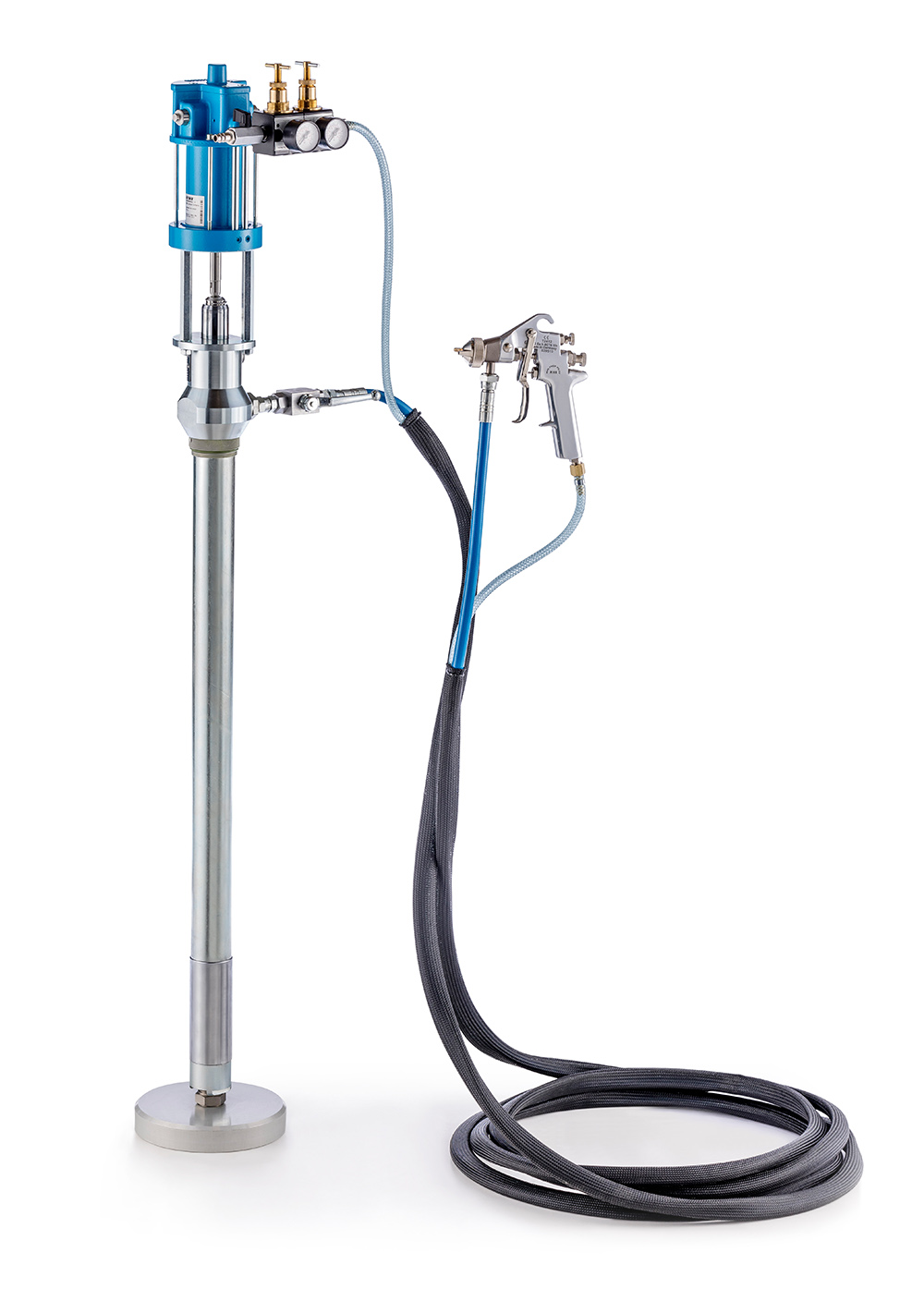

System solution for direct suction from a 200 liter container
- Thick material gun included
- Suitable for one delivery point
- With LP pump 146.8 or 374.09.5
Description
Particularly user-friendly.
With this system solution, we present an all-inclusive package with thick-material gun and hose package for compressed air and adhesive. We look forward to your inquiry!
Suitable accessories
Technical Data
Model
|
146.8 |
| Pressure ratio | 8:1 |
| Max. output (at 60 cycles/min): | 8.8 l/min (2.3 gallon/min) |
| Order number | |
| RS | 0673130 |
|
Model
|
374.09,5 |
| Pressure ratio | 9.5:1 |
| Max. output (at 60 cycles/min): | 22.44 l/min (5.9 gallon/min) |
| Order number | |
| N | 0673131 |
Frame: B On container, D on tripod, F on chassis, G on rack, H on lift truck, GZ On Rack with feed funnel, W on wall mount
Feed: ASL suction tube, DAS Direct suction, eM External mixer with intermediate adapter
Fields Of Application
Automotive
Fire protection
Insulation
Railcar construction
Building renovation
Apparatus and mechanical engineering
Bonding
Building and corrosion protection
General Industry
Wood and furniture industry
Materials
- Synthetic resin dispersion
- Latex
- Bitumen
- Mineral oil based corrosion inhibitor
- Synthetic rubber
Particularly user-friendly.
With this system solution, we present an all-inclusive package with thick-material gun and hose package for compressed air and adhesive. We look forward to your inquiry!
Suitable accessories
|
Model
|
146.8 |
| Pressure ratio | 8:1 |
| Max. output (at 60 cycles/min): | 8.8 l/min (2.3 gallon/min) |
| Order number | |
| RS | 0673130 |
|
Model
|
374.09,5 |
| Pressure ratio | 9.5:1 |
| Max. output (at 60 cycles/min): | 22.44 l/min (5.9 gallon/min) |
| Order number | |
| N | 0673131 |
Frame: B On container, D on tripod, F on chassis, G on rack, H on lift truck, GZ On Rack with feed funnel, W on wall mount
Feed: ASL suction tube, DAS Direct suction, eM External mixer with intermediate adapter
Fields Of Application
Automotive
Fire protection
Insulation
Railcar construction
Building renovation
Apparatus and mechanical engineering
Bonding
Building and corrosion protection
General Industry
Wood and furniture industry
Materials
- Synthetic resin dispersion
- Latex
- Bitumen
- Mineral oil based corrosion inhibitor
- Synthetic rubber
