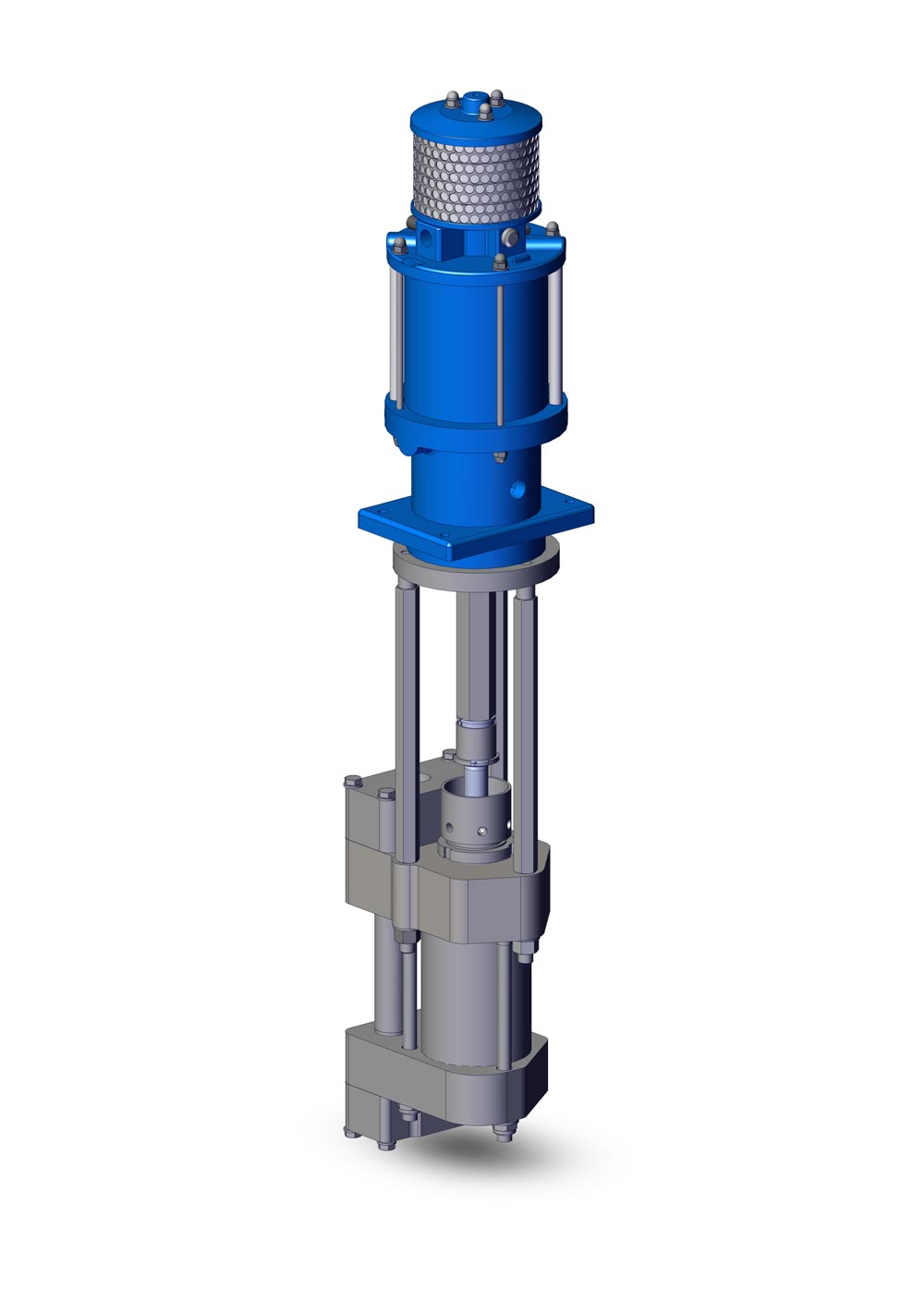

WIWA 4-BALL PUMPS
- High output and pressure ratios
- Fast and service friendly maintenance
- All material-carrying parts made of stainless steel
Description
Uncompromising ease of use.
With the WIWA 4-ball pumps, you can convey even the most difficult materials.
Technical Data
Model
|
865 |
| Pressure ratio | 4:1 |
| Output per cycle | 865 ccm (28.8 fl.oz.) |
| Max. operating pressure | 32 bar (464 psi) |
| Order number | 0656175 |
|
Model
|
865 |
| Pressure ratio | 11:1 |
| Output per cycle | 865 ccm (28.8 fl.oz.) |
| Max. operating pressure | 88 bar (1,276 psi) |
| Order number | 0656174 |
|
Model
|
865 |
| Pressure ratio | 22:1 |
| Output per cycle | 865 ccm (28.8 fl.oz.) |
| Max. operating pressure | 176 bar (2,553 psi) |
| Order number | 0655114 |
|
Model
|
1140 |
| Pressure ratio | 3:1 |
| Output per cycle | 1140 ccm (38 fl.oz.) |
| Max. operating pressure | 24 bar (348 psi) |
| Order number | 0655040 |
|
Model
|
1140 |
| Pressure ratio | 8:1 |
| Output per cycle | 1140 ccm (38 fl.oz.) |
| Max. operating pressure | 64 bar (928 psi) |
| Order number | 0654171 |
|
Model
|
1140 |
| Pressure ratio | 17:1 |
| Output per cycle | 1140 ccm (38 fl.oz.) |
| Max. operating pressure | 136 bar (1,973 psi) |
| Order number | 0654237 |
|
Model
|
1820 |
| Pressure ratio | 2:1 |
| Output per cycle | 1820 ccm (60.7 fl.oz.) |
| Max. operating pressure | 16 bar (232 psi) |
| Order number | 0654619 |
|
Model
|
1820 |
| Pressure ratio | 4:1 |
| Output per cycle | 1820 ccm (60.7 fl.oz.) |
| Max. operating pressure | 32 bar (464 psi) |
| Order number | 0654624 |
|
Model
|
1820 |
| Pressure ratio | 11:1 |
| Output per cycle | 1820 ccm (60.7 fl.oz.) |
| Max. operating pressure | 88 bar (1,276 psi) |
| Order number | 0653283 |
Frame: B On container, D on tripod, F on chassis, G on rack, H on lift truck, GZ On Rack with feed funnel, W on wall mount
Feed: ASL suction tube, DAS Direct suction, eM External mixer with intermediate adapter
Fields Of Application
Automotive
Building renovation
Chemical Industry
Pipes and pipelines
Conveyor and paint supply
