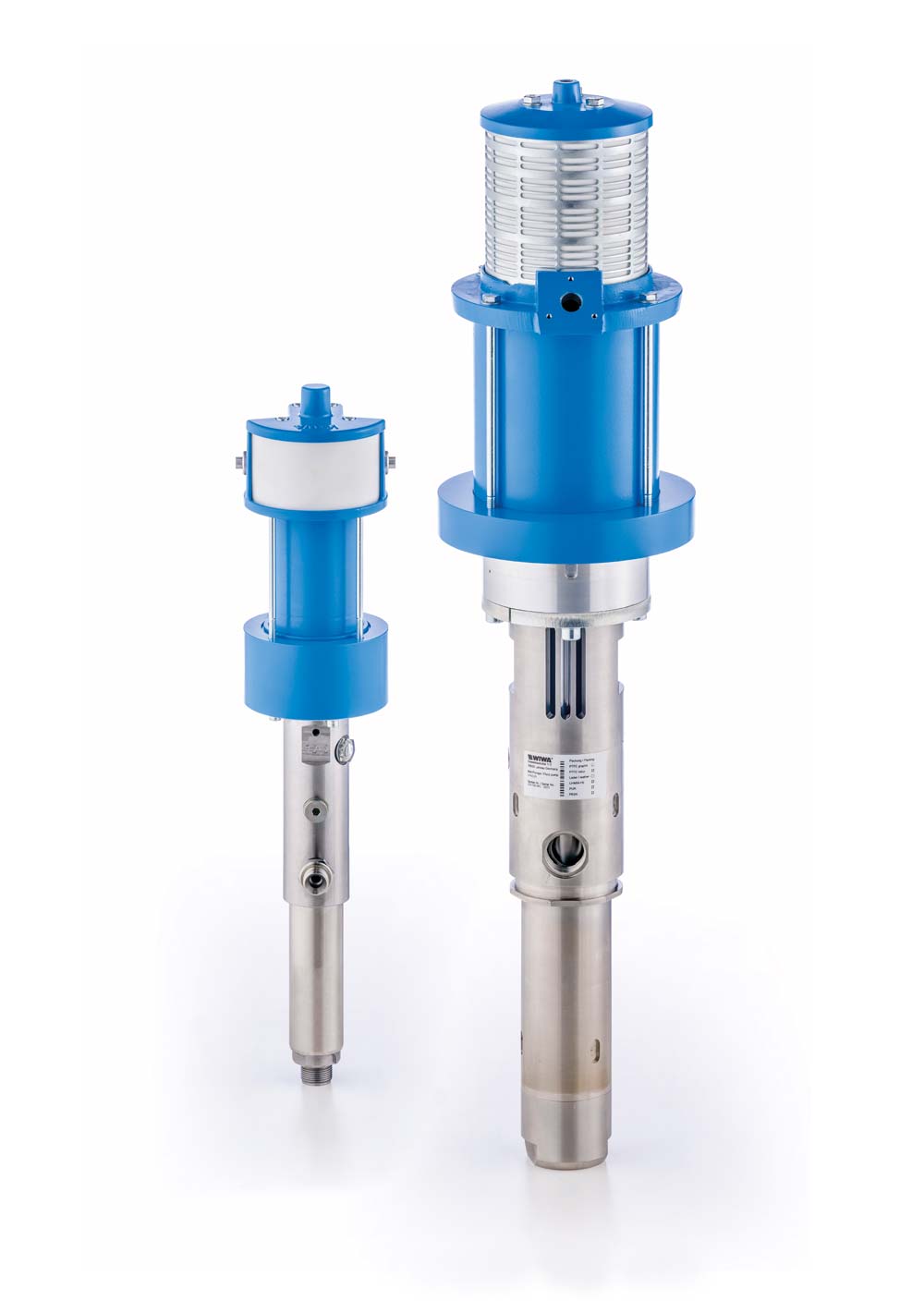

WIWA LOW PRESSURE PUMPS GX

  • Optimized material flow
  • User-friendly, easy to maintain and durable
  • Easy assembly and disassembly due to coarser threads
Brochure

Description

Particularly user-friendly.

The proven WIWA air motors continue to be used for the new low-pressure pumps. The main features of the material pumps are a follower piston packing, easy assembly and disassembly due to coarser threads, and large material valves through which even highly viscous inks can be easily suctioned. The material flow has been optimized and enables better cleaning of the pump. In addition, the WIWA LP pumps GX are particularly user-friendly, easy to maintain and durable due to the spring-loaded packings. The closed system due to the encapsulable release agent chamber is especially advantageous when processing ISO materials.

Our low-pressure pumps can also be equipped with a powerful hydraulic motor for integration into mobile units with hydraulic power packs - for road marking, for example. We will be happy to advise you!

Suitable accessories

Technical Data

Model 72.03.7
Pressure ratio 3.7:1
Max. output (at 60 cycles/min): 4.33 l/min (1.1 gallon/min)
Max. operating pressure 29.6 bar (429 psi)
Order numbers
Standard RS-K 0669759
ISO RS-K 0670107
Glue RS-K 0669919
Water RS-K 0670140
Model 72.07.6
Pressure ratio 7.6:1
Max. output (at 60 cycles/min): 4.33 l/min (1.1 gallon/min)
Max. operating pressure 60.8 bar (882 psi)
Order numbers
Standard RS-K 0669758
RS-K/ISO 0670108
Glue RS-K 0669920
Water RS-K 0670141
Model 72.011.4
Pressure ratio 11.4:1
Max. output (at 60 cycles/min): 4.33 l/min (1.1 gallon/min)
Max. operating pressure 91.2 bar (1,323 psi)
Order numbers
Standard RS-K 0669757
ISO RS-K 0670109
Glue RS-K 0669921
Model 146.01.8
Pressure ratio 1.8:1
Max. output (at 60 cycles/min): 8.8 l/min (2.3 gallon/min)
Max. operating pressure 14.4 bar (209 psi)
Order numbers
Standard RS-K 0669485
Standard RS-L 0669481
ISO RS-K 0669487
ISO RS-L 0669483
Glue RS-K 0669922
Water RS-K 0670136
ISO N-L 0669809
Model 146.03.7
Pressure ratio 3.7:1
Max. output (at 60 cycles/min): 8.8 l/min (2.3 gallon/min)
Max. operating pressure 29.6 bar (429 psi)
Order numbers
Standard RS-K 0669486
Standard RS-L 0669482
ISO RS-K 0669488
ISO RS-L 0669484
Glue RS-K 0669923
Water RS-K 0670137
ISO N-L 0663033
Glue RS-L 0672990
Model 146.05.6
Pressure ratio 5.6:1
Max. output (at 60 cycles/min): 8.8 l/min (2.3 gallon/min)
Max. operating pressure 44.8 bar (650 psi)
Order numbers
Standard RS-K 0667739
Standard RS-L 0667775
ISO RS-K 0667738
ISO RS-L 0667774
Glue RS-K 0669924
Water RS-K 0670138
ISO N-L 0666083
Model 146.08
Pressure ratio 8:1
Max. output (at 60 cycles/min): 8.8 l/min (2.3 gallon/min)
Max. operating pressure 48 bar (696 psi)
Order numbers
Standard RS-K 0673020
Standard RS-K 0673101
Standard RS-L 0673102
Standard RS-L 0673104
Model 146.15.2
Pressure ratio 15:1
Max. output 8.8 l/min (2.3 gallon/min)
Max. operating pressure 91.2 bar (1,323 psi)
Order numbers
Standard RS-K 0672760
Standard RS-K 0673106
Standard RS-L 0673103
Standard RS-L 0673105
Model 374.05.2
Pressure ratio 5.2:1
Max. output (at 60 cycles/min): 22.44 l/min (5.9 gallon/min)
Max. operating pressure 41.6 bar (603 psi)
Order numbers
Standard N-K 0670164
Standard N-L 0670165
Standard RS-K 0669753
Standard RS-L 0669754
ISO N-K 0670207
ISO N-L 0670208
Model 374.09.5
Pressure ratio 9.5:1
Max. output (at 60 cycles/min): 22.44 l/min (5.9 gallon/min)
Max. operating pressure 76 bar (1,102 psi)
Order numbers
Standard N-K 0670166
Standard N-L 0670167
Standard RS-K 0669210
Standard RS-L 0669263
ISO N-K 0670209
ISO N-L 0670210
ISO RS-K 0670531
Model 603.03.2
Pressure ratio 3.2:1
Max. output (at 60 cycles/min): 36.18 l/min (9.6 gallon/min)
Max. operating pressure 25.6 bar (371 psi)
Order numbers
Standard N-K 0670168
Standard RS-K 0669860
ISO N-K 0670211
Model 603.05.9
Pressure ratio 5.9:1
Max. output (at 60 cycles/min): 36.18 l/min (9.6 gallon/min)
Max. operating pressure 47.2 bar (685 psi)
Order numbers
Standard N-K 0670169
Standard RS-K 0669321
ISO N-K 0670212
Model 603.012.1
Pressure ratio 12.1:1
Max. output (at 60 cycles/min): 36.18 l/min (9.6 gallon/min)
Max. operating pressure 78.65 bar (1,141 psi)
Order numbers
Standard N-K 0670170
Standard RS-K 0669755
ISO N-K 0670213
N - Normal steel galvanized, not stainless, R - stainless, RS - Stainless steel, rust and acid resistant,
B - On container, D - on tripod, F - on chassis, G - on rack, H - on lift truck,
GZ - On Rack with feed funnel, W - on wall mount, ASL - suction tube, DAS - Direct suction

Fields Of Application

Automotive

Chemical Industry

Joineries

Painting and varnishing companies

Conveyor and paint supply

General Industry

Aircraft industry

Wood and furniture industry

Materials

  • Sprayable paints and varnishes
  • Waterborne paints
  • Solvent-based coating materials
  • Oils and greases
  • Throat seal liquid
  • Stains
  • Adhesives and glues
  • Plastisols
  • Sealants
  • Bitumen
  • Epoxies
  • Underbody protection
  • Roof coating materials
  • Insulating and thick-film materials
  • Other high viscosity materials with high solids content

Particularly user-friendly.

The proven WIWA air motors continue to be used for the new low-pressure pumps. The main features of the material pumps are a follower piston packing, easy assembly and disassembly due to coarser threads, and large material valves through which even highly viscous inks can be easily suctioned. The material flow has been optimized and enables better cleaning of the pump. In addition, the WIWA LP pumps GX are particularly user-friendly, easy to maintain and durable due to the spring-loaded packings. The closed system due to the encapsulable release agent chamber is especially advantageous when processing ISO materials.

Our low-pressure pumps can also be equipped with a powerful hydraulic motor for integration into mobile units with hydraulic power packs - for road marking, for example. We will be happy to advise you!

Suitable accessories
Model 72.03.7
Pressure ratio 3.7:1
Max. output (at 60 cycles/min): 4.33 l/min (1.1 gallon/min)
Max. operating pressure 29.6 bar (429 psi)
Order numbers
Standard RS-K 0669759
ISO RS-K 0670107
Glue RS-K 0669919
Water RS-K 0670140
Model 72.07.6
Pressure ratio 7.6:1
Max. output (at 60 cycles/min): 4.33 l/min (1.1 gallon/min)
Max. operating pressure 60.8 bar (882 psi)
Order numbers
Standard RS-K 0669758
RS-K/ISO 0670108
Glue RS-K 0669920
Water RS-K 0670141
Model 72.011.4
Pressure ratio 11.4:1
Max. output (at 60 cycles/min): 4.33 l/min (1.1 gallon/min)
Max. operating pressure 91.2 bar (1,323 psi)
Order numbers
Standard RS-K 0669757
ISO RS-K 0670109
Glue RS-K 0669921
Model 146.01.8
Pressure ratio 1.8:1
Max. output (at 60 cycles/min): 8.8 l/min (2.3 gallon/min)
Max. operating pressure 14.4 bar (209 psi)
Order numbers
Standard RS-K 0669485
Standard RS-L 0669481
ISO RS-K 0669487
ISO RS-L 0669483
Glue RS-K 0669922
Water RS-K 0670136
ISO N-L 0669809
Model 146.03.7
Pressure ratio 3.7:1
Max. output (at 60 cycles/min): 8.8 l/min (2.3 gallon/min)
Max. operating pressure 29.6 bar (429 psi)
Order numbers
Standard RS-K 0669486
Standard RS-L 0669482
ISO RS-K 0669488
ISO RS-L 0669484
Glue RS-K 0669923
Water RS-K 0670137
ISO N-L 0663033
Glue RS-L 0672990
Model 146.05.6
Pressure ratio 5.6:1
Max. output (at 60 cycles/min): 8.8 l/min (2.3 gallon/min)
Max. operating pressure 44.8 bar (650 psi)
Order numbers
Standard RS-K 0667739
Standard RS-L 0667775
ISO RS-K 0667738
ISO RS-L 0667774
Glue RS-K 0669924
Water RS-K 0670138
ISO N-L 0666083
Model 146.08
Pressure ratio 8:1
Max. output (at 60 cycles/min): 8.8 l/min (2.3 gallon/min)
Max. operating pressure 48 bar (696 psi)
Order numbers
Standard RS-K 0673020
Standard RS-K 0673101
Standard RS-L 0673102
Standard RS-L 0673104
Model 146.15.2
Pressure ratio 15:1
Max. output 8.8 l/min (2.3 gallon/min)
Max. operating pressure 91.2 bar (1,323 psi)
Order numbers
Standard RS-K 0672760
Standard RS-K 0673106
Standard RS-L 0673103
Standard RS-L 0673105
Model 374.05.2
Pressure ratio 5.2:1
Max. output (at 60 cycles/min): 22.44 l/min (5.9 gallon/min)
Max. operating pressure 41.6 bar (603 psi)
Order numbers
Standard N-K 0670164
Standard N-L 0670165
Standard RS-K 0669753
Standard RS-L 0669754
ISO N-K 0670207
ISO N-L 0670208
Model 374.09.5
Pressure ratio 9.5:1
Max. output (at 60 cycles/min): 22.44 l/min (5.9 gallon/min)
Max. operating pressure 76 bar (1,102 psi)
Order numbers
Standard N-K 0670166
Standard N-L 0670167
Standard RS-K 0669210
Standard RS-L 0669263
ISO N-K 0670209
ISO N-L 0670210
ISO RS-K 0670531
Model 603.03.2
Pressure ratio 3.2:1
Max. output (at 60 cycles/min): 36.18 l/min (9.6 gallon/min)
Max. operating pressure 25.6 bar (371 psi)
Order numbers
Standard N-K 0670168
Standard RS-K 0669860
ISO N-K 0670211
Model 603.05.9
Pressure ratio 5.9:1
Max. output (at 60 cycles/min): 36.18 l/min (9.6 gallon/min)
Max. operating pressure 47.2 bar (685 psi)
Order numbers
Standard N-K 0670169
Standard RS-K 0669321
ISO N-K 0670212
Model 603.012.1
Pressure ratio 12.1:1
Max. output (at 60 cycles/min): 36.18 l/min (9.6 gallon/min)
Max. operating pressure 78.65 bar (1,141 psi)
Order numbers
Standard N-K 0670170
Standard RS-K 0669755
ISO N-K 0670213
N - Normal steel galvanized, not stainless, R - stainless, RS - Stainless steel, rust and acid resistant,
B - On container, D - on tripod, F - on chassis, G - on rack, H - on lift truck,
GZ - On Rack with feed funnel, W - on wall mount, ASL - suction tube, DAS - Direct suction

Fields Of Application

Automotive

Chemical Industry

Joineries

Painting and varnishing companies

Conveyor and paint supply

General Industry

Aircraft industry

Wood and furniture industry

Materials

  • Sprayable paints and varnishes
  • Waterborne paints
  • Solvent-based coating materials
  • Oils and greases
  • Throat seal liquid
  • Stains
  • Adhesives and glues
  • Plastisols
  • Sealants
  • Bitumen
  • Epoxies
  • Underbody protection
  • Roof coating materials
  • Insulating and thick-film materials
  • Other high viscosity materials with high solids content

These products may also interest you.

WIWA VULKAN GX

Pressure ratio: 14 - 72 :1
Output per cycle:
79 - 580 ccm (2.6 - 19.3 fl.oz.)

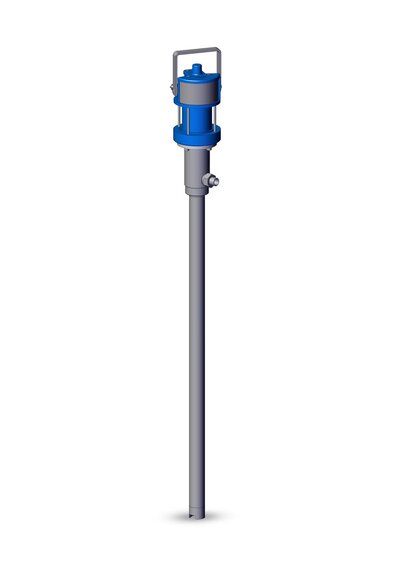

WIWA OIL PUMPS

Pressure ratio: 2 - 15.5 :1
Output per cycle:
40 - 150 ccm (1.3 - 5 fl.oz.)

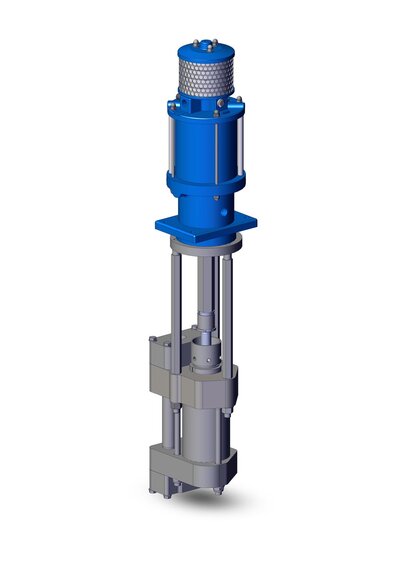

WIWA 4-BALL PUMPS
