Description
Particularly user-friendly.

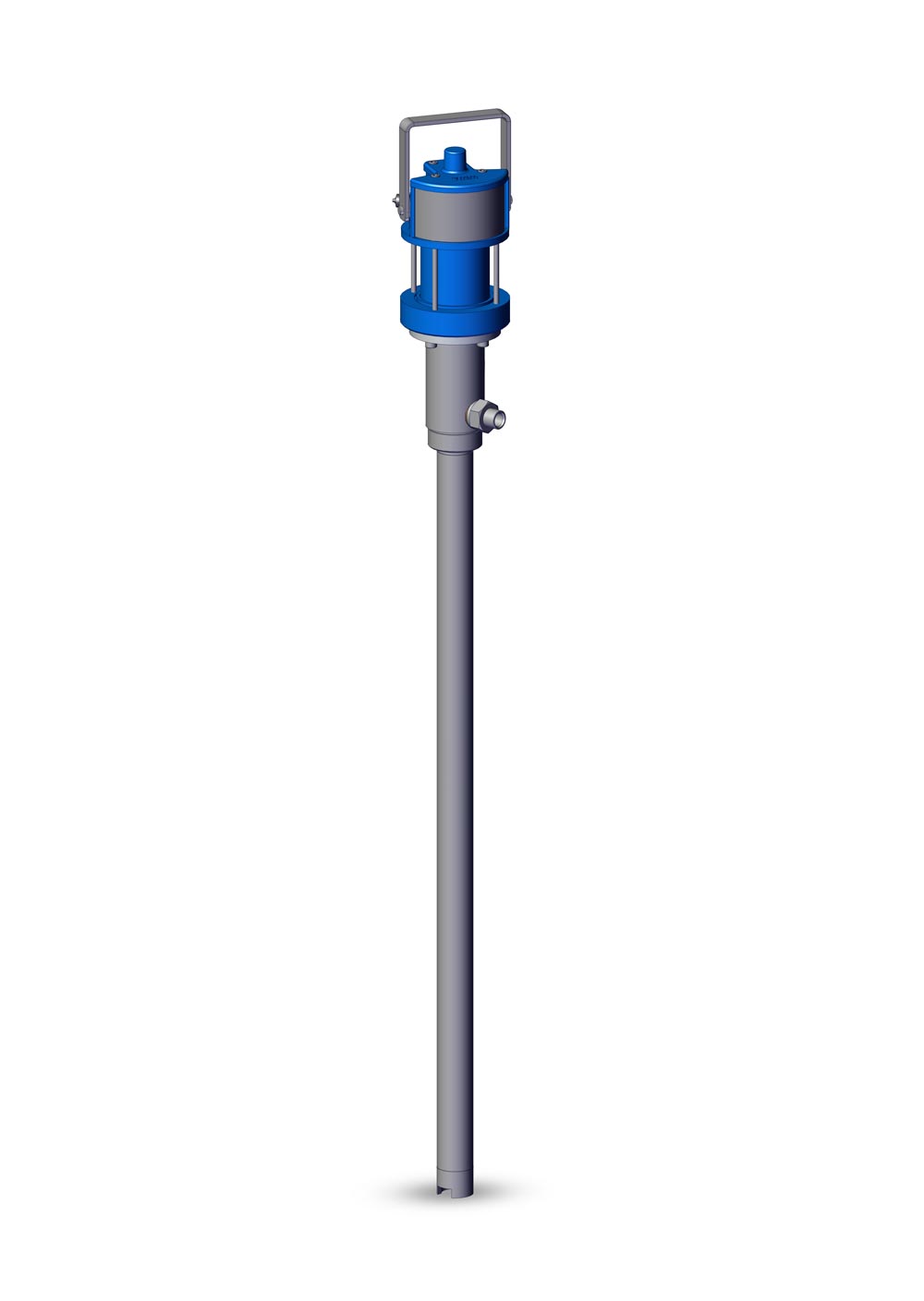

With our pneumatically driven piston pumps for transferring oil, you always have a reliable partner on hand. The robust 40 and 82 series have a 2'' bung fitting and are suitable for material transfer from containers with 25, 30, 60 or 216 liters capacity.
Technical Data
Model
|
Serie 40 |
| Pressure ratio | 4:1 |
| Output per cycle | 40 ccm (1.3 fl.oz.) |
| Max. inbound air pressure | 8 bar (116 psi) |
| Max. operating pressure | 32 bar (464 psi) |
| Order number | |
| N | 0656759 |
|
Model
|
Serie 82 |
| Pressure ratio | 2:1 |
| Output per cycle | 82 ccm (2.7 fl.oz.) |
| Max. inbound air pressure | 8 bar (116 psi) |
| Max. operating pressure | 16 bar (232 psi) |
| Order number | |
| N | 0656757 |
|
Model
|
Serie 40 |
| Pressure ratio | 6:1 |
| Output per cycle | 40 ccm (1.3 fl.oz.) |
| Max. inbound air pressure | 8 bar (116 psi) |
| Max. operating pressure | 48 bar (696 psi) |
| Order number | |
| N | 0656760 |
|
Model
|
Serie 82 |
| Pressure ratio | 3:1 |
| Output per cycle | 82 ccm (2.7 fl.oz.) |
| Max. inbound air pressure | 8 bar (116 psi) |
| Max. operating pressure | 24 bar (348 psi) |
| Order number | |
| N | 0656758 |
|
Model
|
150.05 |
| Pressure ratio | 5:1 |
| Output per cycle | 150 ccm (5 fl.oz.) |
| Max. inbound air pressure | 8 bar (116 psi) |
| Max. operating pressure | 40 bar (580 psi) |
| Order number | |
| N | 0646116 |
|
Model
|
150.015,5 |
| Pressure ratio | 15.5:1 |
| Output per cycle | 150 ccm (5 fl.oz.) |
| Max. inbound air pressure | 4.5 bar (65 psi) |
| Max. operating pressure | 69.75 bar (1,012 psi) |
| Order number | |
| N | 0665891 |
Frame: B On container, D on tripod, F on chassis, G on rack, H on lift truck, GZ On Rack with feed funnel, W on wall mount
Feed: ASL suction tube, DAS Direct suction, eM External mixer with intermediate adapter
Fields Of Application
Automotive
Railcar construction
Chemical Industry
Apparatus and mechanical engineering
Pipes and pipelines
Building and corrosion protection
Marine Industry
Conveyor and paint supply
