WIWA 250 D
- Flexible handling
- Smooth two-finger trigger
- Optimum maneuverability due to ball bearing mounted swivel joint
Description
Can be used with all known airless systems and for all sprayable media.

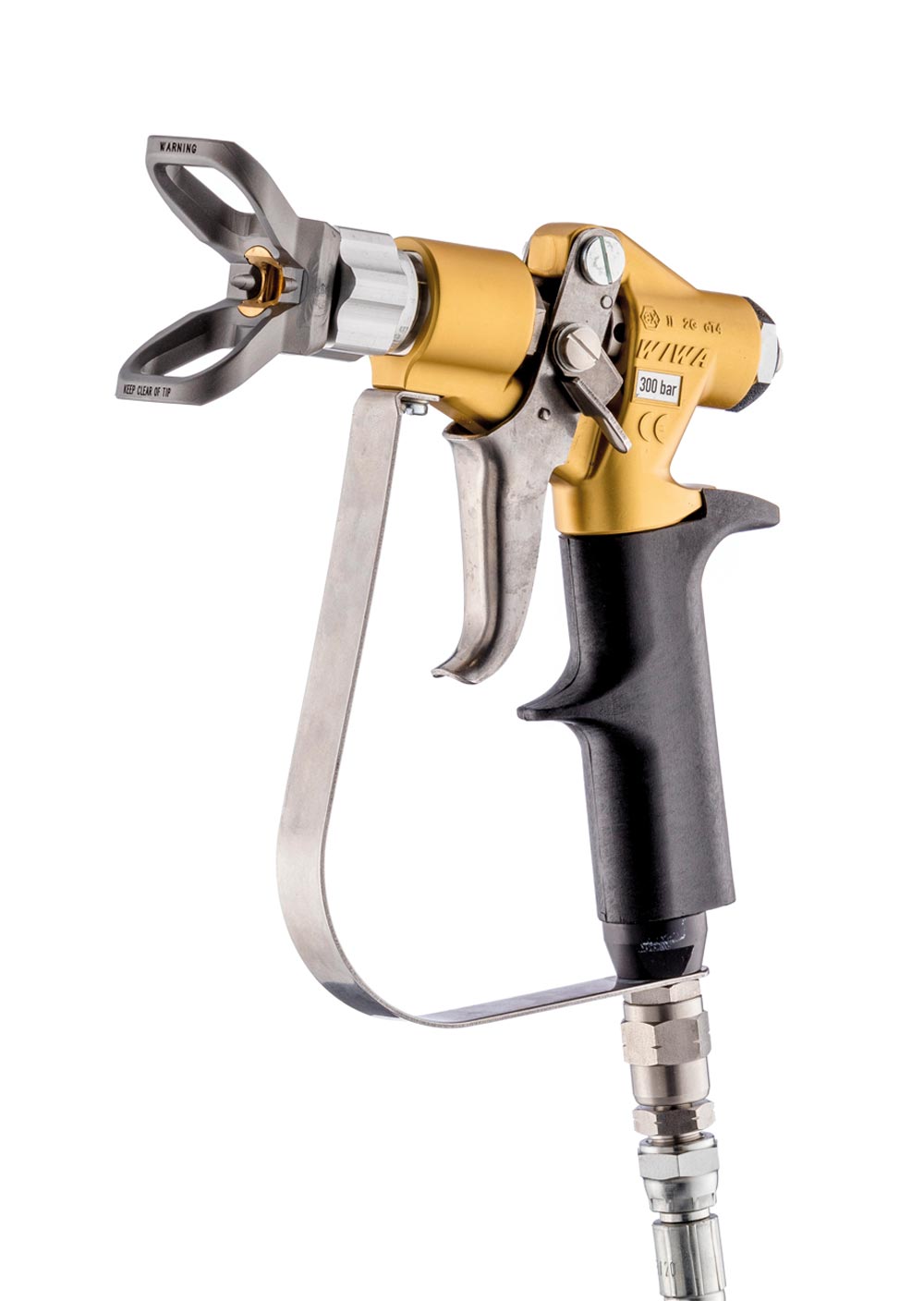

The WIWA 250 D is a handy airless spray gun with a smooth-running two-finger trigger for fine painting work and large area coverage. The ball-bearing mounted swivel joint ensures optimum maneuverability.
Suitable products
- System solutions for small and large containers
- System solution for 20 liter containers
- System solution for 200-liter containers
- System solution for direct suction from a 200 liter container
- System solution for 200 liter bunghole drums
- System solution for 1000-liter IBCs
- System solution for small containers and individual workstations
- WIWA PROFIT
- WIWA VULKAN GX
- WIWA PHOENIX GX
Selection of project references
Technical Data
Model
|
250 |
| Order number | 0011258 |
| Description | Two-finger trigger without swivel 1/4" NPSM with nozzle connection thread 11/16 UNS |
| Max. operating pressure | 250 bar (3,626 psi) |
|
Model
|
250D |
| Order number | 0646997 |
| Description | Two-finger trigger with 1/4" NPSM swivel joint with 7/8" nozzle connection thread |
| Max. operating pressure | 250 bar (3,626 psi) |
|
Model
|
250D |
| Order number | 0015032 |
| Description | Two-finger trigger with swivel 3/8" NPSM with nozzle connection thread 11/16 UNS |
| Max. operating pressure | 250 bar (3,626 psi) |
Frame: B On container, D on tripod, F on chassis, G on rack, H on lift truck, GZ On Rack with feed funnel, W on wall mount
Feed: ASL suction tube, DAS Direct suction, eM External mixer with intermediate adapter
Can be used with all known airless systems and for all sprayable media.
The WIWA 250 D is a handy airless spray gun with a smooth-running two-finger trigger for fine painting work and large area coverage. The ball-bearing mounted swivel joint ensures optimum maneuverability.
Suitable products
- System solutions for small and large containers
- System solution for 20 liter containers
- System solution for 200-liter containers
- System solution for direct suction from a 200 liter container
- System solution for 200 liter bunghole drums
- System solution for 1000-liter IBCs
- System solution for small containers and individual workstations
- WIWA PROFIT
- WIWA VULKAN GX
- WIWA PHOENIX GX
Selection of project references
|
Model
|
250 |
| Order number | 0011258 |
| Description | Two-finger trigger without swivel 1/4" NPSM with nozzle connection thread 11/16 UNS |
| Max. operating pressure | 250 bar (3,626 psi) |
|
Model
|
250D |
| Order number | 0646997 |
| Description | Two-finger trigger with 1/4" NPSM swivel joint with 7/8" nozzle connection thread |
| Max. operating pressure | 250 bar (3,626 psi) |
|
Model
|
250D |
| Order number | 0015032 |
| Description | Two-finger trigger with swivel 3/8" NPSM with nozzle connection thread 11/16 UNS |
| Max. operating pressure | 250 bar (3,626 psi) |
Frame: B On container, D on tripod, F on chassis, G on rack, H on lift truck, GZ On Rack with feed funnel, W on wall mount
Feed: ASL suction tube, DAS Direct suction, eM External mixer with intermediate adapter
