WIWA INJECT 2K 14025 GX
- Fast commissioning
- Large material inlets and check valves for viscous materials
- High mixing accuracy due to force-controlled material handling
Description
Compact and lightweight for any construction site.

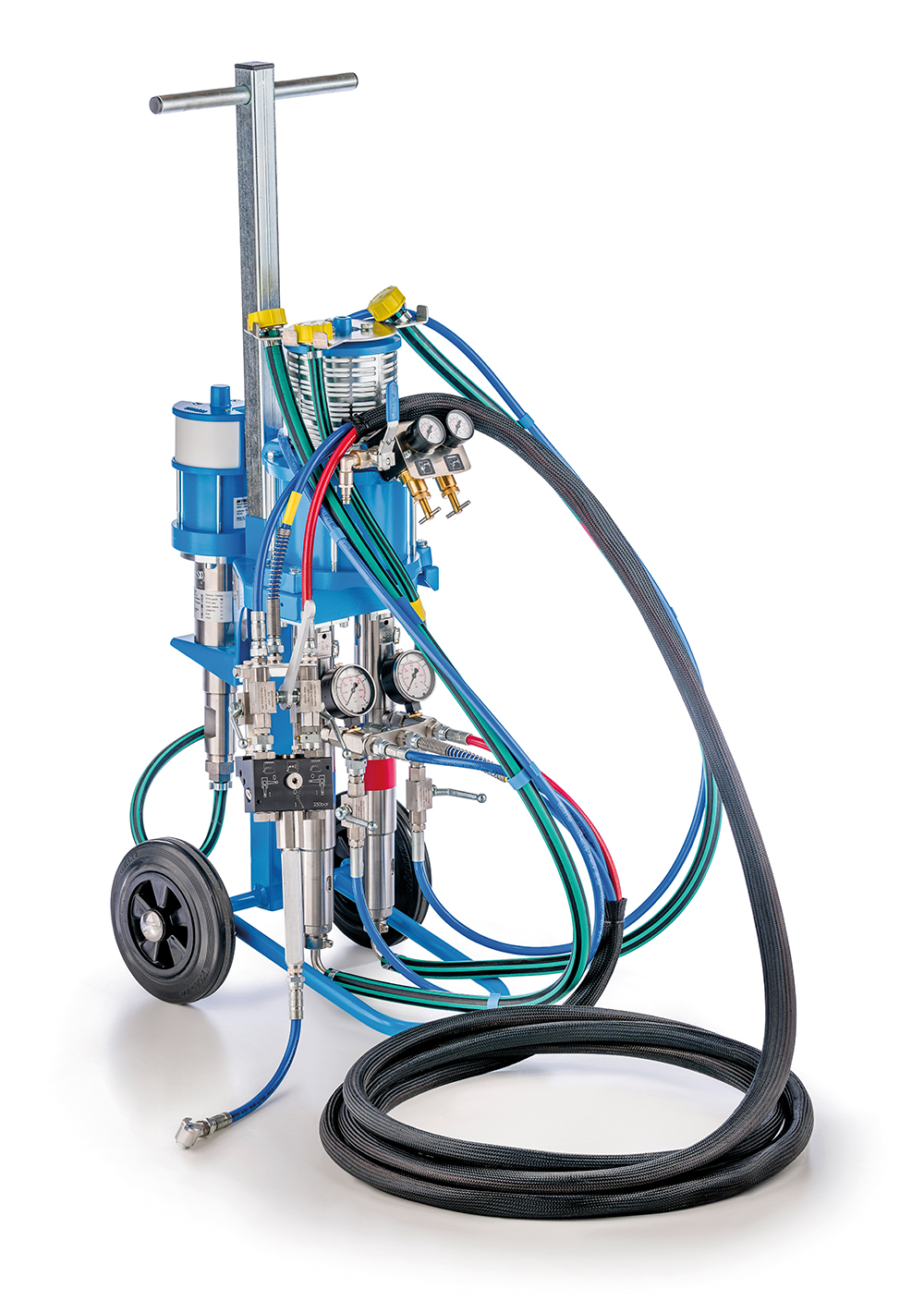

The WIWA INJECT 2K 14025 GX is a pneumatic 2K piston pump with a mixing ratio of 1:1. The material pumps are connected to the air motor, so no mixing errors can occur due to the positive control. The unit is equipped with a flushing pump for cleaning the A & B components in the mixing block. The compact and lightweight design makes it particularly suitable for construction sites, even for use in inaccessible places. All material-carrying parts are made of stainless steel.
Suitable accessories
Technical Data
Model
|
INJECT 2K 14025 GX |
| Pressure ratio | 25:1 |
| Output per cycle | 86 ccm (2.9 fl.oz.) |
| Max. inbound air pressure | 8 bar (116 psi) |
| Max. operating pressure | 200 bar (2,901 psi) |
| Order number | 0669067 |
Frame: B On container, D on tripod, F on chassis, G on rack, H on lift truck, GZ On Rack with feed funnel, W on wall mount
Feed: ASL suction tube, DAS Direct suction, eM External mixer with intermediate adapter
Fields Of Application
Mining
Building renovation
Pipes and pipelines
Building and corrosion protection
Tunnels
Building and civil engineering
Compact and lightweight for any construction site.
The WIWA INJECT 2K 14025 GX is a pneumatic 2K piston pump with a mixing ratio of 1:1. The material pumps are connected to the air motor, so no mixing errors can occur due to the positive control. The unit is equipped with a flushing pump for cleaning the A & B components in the mixing block. The compact and lightweight design makes it particularly suitable for construction sites, even for use in inaccessible places. All material-carrying parts are made of stainless steel.
Suitable accessories
|
Model
|
INJECT 2K 14025 GX |
| Pressure ratio | 25:1 |
| Output per cycle | 86 ccm (2.9 fl.oz.) |
| Max. inbound air pressure | 8 bar (116 psi) |
| Max. operating pressure | 200 bar (2,901 psi) |
| Order number | 0669067 |
Frame: B On container, D on tripod, F on chassis, G on rack, H on lift truck, GZ On Rack with feed funnel, W on wall mount
Feed: ASL suction tube, DAS Direct suction, eM External mixer with intermediate adapter
Fields Of Application
Mining
Building renovation
Pipes and pipelines
Building and corrosion protection
Tunnels
Building and civil engineering
