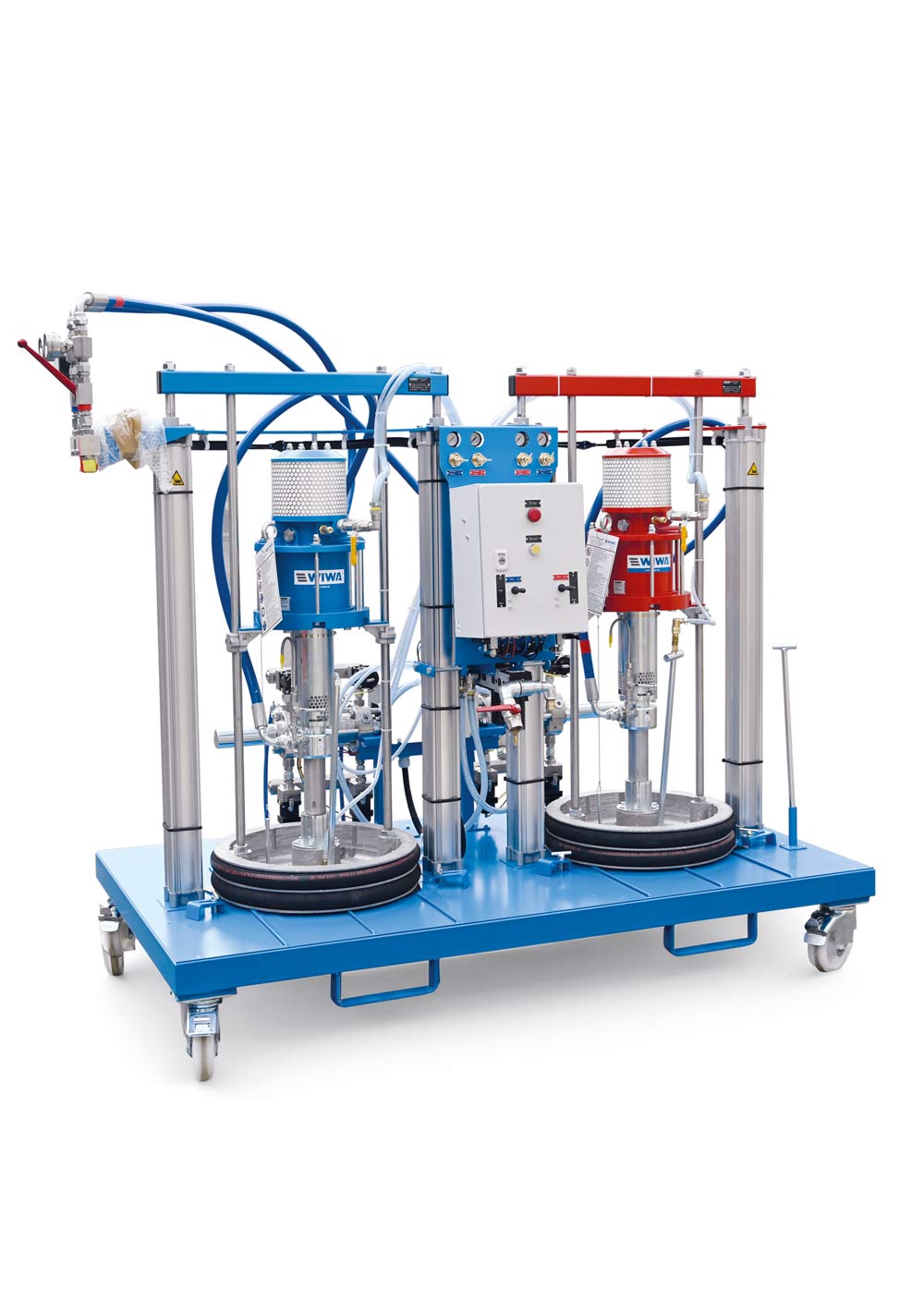

WIWA DOSYS XL
- Precision and performance
- Countless customized configurations due to modular design
- Environmental friendliness and cost savings due to removal from large containers
Description
High outputs without interruptions.
Even with the larger, more stationary WIWA DOSYS XL, results that vary depending on the day and the user, unevenness in the material surface, and expensive and time-consuming leveling work are a thing of the past. The unit, equipped with either pedestals or rollers, was developed especially for large-area industrial coatings where a continuous output is required.
With the WIWA DOSYS XL, you can count on bubble-free mixing with a constant mixing ratio and therefore on consistent quality of your job. The extraction from different sized containers makes it an environmentally friendly and economical partner for every project.
Selection of project references
Technical Data
Model
|
DOSYS XL |
| Output per cycle | 1263 ccm (42.1 fl.oz.) |
| Max. inbound air pressure | 8 bar (116 psi) |
| Max. operating pressure | 192 bar (2,785 psi) |
| Order number | 0671758 |
|
Model
|
DOSYS XL |
| Output per cycle | 2106 ccm (70.2 fl.oz.) |
| Max. inbound air pressure | 8 bar (116 psi) |
| Max. operating pressure | 270 bar (3,916 psi) |
| Order number | 0671752 |
|
Model
|
DOSYS XL |
| Output per cycle | 2106 ccm (70.2 fl.oz.) |
| Max. inbound air pressure | 8 bar (116 psi) |
| Max. operating pressure | 208 bar (3,017 psi) |
| Order number | 0671751 |
Frame: B On container, D on tripod, F on chassis, G on rack, H on lift truck, GZ On Rack with feed funnel, W on wall mount
Feed: ASL suction tube, DAS Direct suction, eM External mixer with intermediate adapter
Fields Of Application
Automotive
Railcar construction
Apparatus and mechanical engineering
Wind power industry
Bonding
Marine Industry
Tunnels
Materials
- Filler materials based on epoxy resin, polyurethane or peroxide
- Adhesives
- Sealants
- Thickeners
- Mastics
- Insulating materials
High outputs without interruptions.
Even with the larger, more stationary WIWA DOSYS XL, results that vary depending on the day and the user, unevenness in the material surface, and expensive and time-consuming leveling work are a thing of the past. The unit, equipped with either pedestals or rollers, was developed especially for large-area industrial coatings where a continuous output is required.
With the WIWA DOSYS XL, you can count on bubble-free mixing with a constant mixing ratio and therefore on consistent quality of your job. The extraction from different sized containers makes it an environmentally friendly and economical partner for every project.
Selection of project references
|
Model
|
DOSYS XL |
| Output per cycle | 1263 ccm (42.1 fl.oz.) |
| Max. inbound air pressure | 8 bar (116 psi) |
| Max. operating pressure | 192 bar (2,785 psi) |
| Order number | 0671758 |
|
Model
|
DOSYS XL |
| Output per cycle | 2106 ccm (70.2 fl.oz.) |
| Max. inbound air pressure | 8 bar (116 psi) |
| Max. operating pressure | 270 bar (3,916 psi) |
| Order number | 0671752 |
|
Model
|
DOSYS XL |
| Output per cycle | 2106 ccm (70.2 fl.oz.) |
| Max. inbound air pressure | 8 bar (116 psi) |
| Max. operating pressure | 208 bar (3,017 psi) |
| Order number | 0671751 |
Frame: B On container, D on tripod, F on chassis, G on rack, H on lift truck, GZ On Rack with feed funnel, W on wall mount
Feed: ASL suction tube, DAS Direct suction, eM External mixer with intermediate adapter
Fields Of Application
Automotive
Railcar construction
Apparatus and mechanical engineering
Wind power industry
Bonding
Marine Industry
Tunnels
Materials
- Filler materials based on epoxy resin, polyurethane or peroxide
- Adhesives
- Sealants
- Thickeners
- Mastics
- Insulating materials
