WIWA DOSYS M
- Simple operation
- Explosion-proof (no electronics, purely pneumatic control)
- Precise conveying at the push of a button even of very small quantities
Description

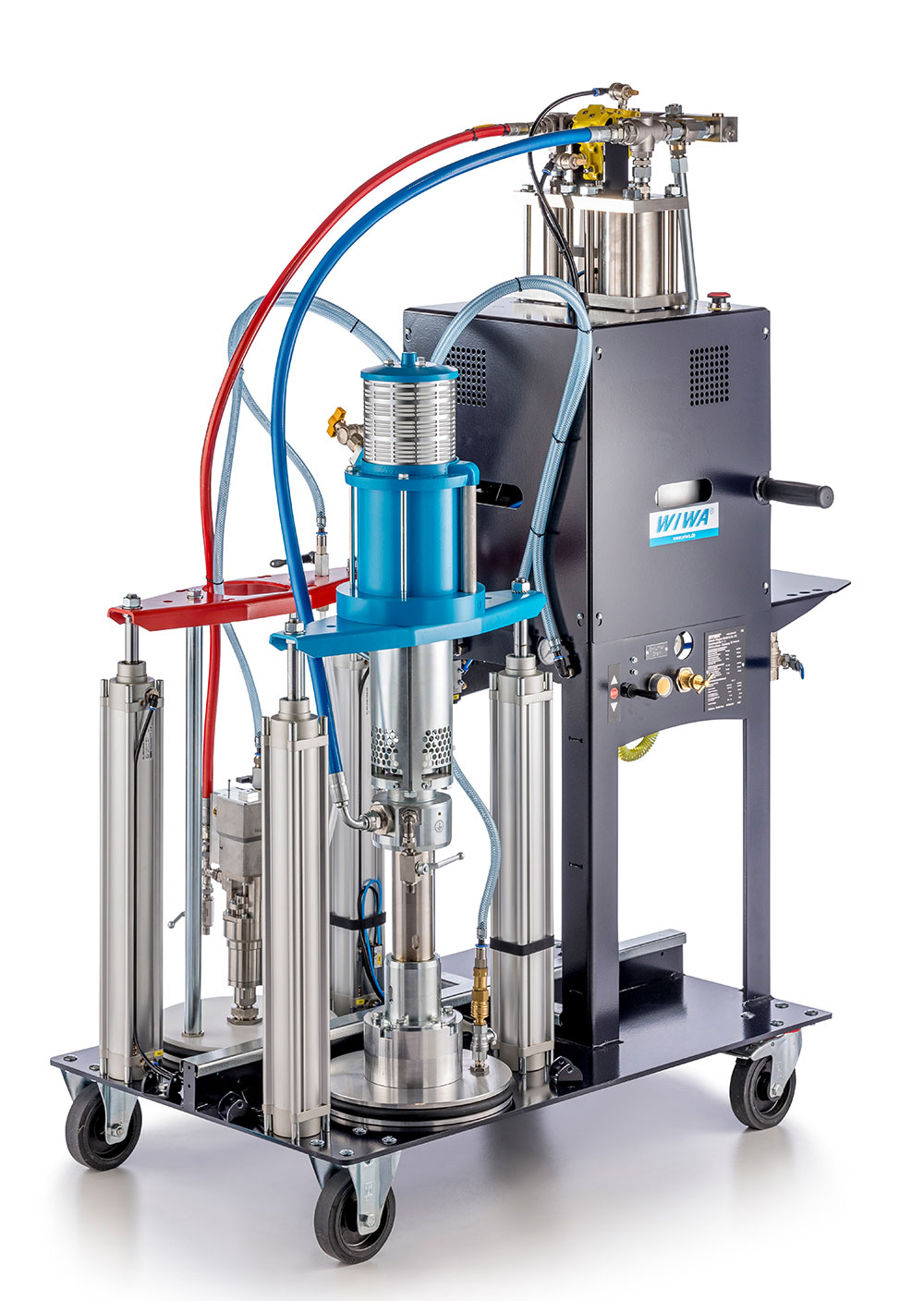

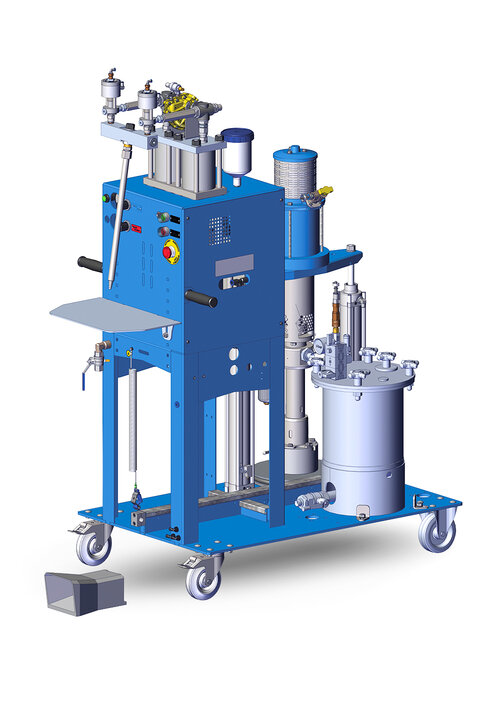

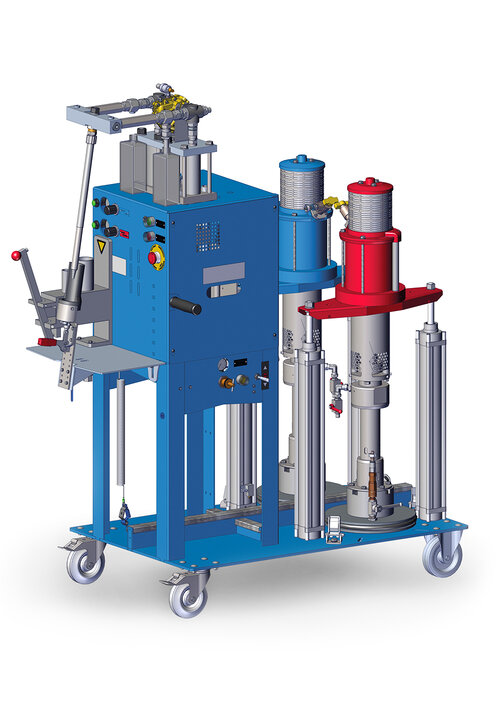

Small quantities efficiently dosed with the WIWA DOSYS M.
When fillers, adhesives or sealants are mixed by hand, there is a risk of air being stirred in. The resulting bubbles in the surface would then have to be compensated by further layers of material - a time and cost factor. In addition, the final result can vary depending on the day and the user.
With the small, mobile WIWA DOSYS M, bubble-free mixing with a constant mixing ratio is guaranteed, thus ensuring the consistent quality of the job. In addition, the removal from containers of different sizes makes it an environmentally friendly and cost-saving partner for any task. Smallest quantities, even of a few milliliters, are the special field of the user-friendly unit, because for selective applications it can even be stopped in the middle of the stroke to provide the exact quantity required.
Selection of project references
Technical Data
Model
|
DOSYS M |
| Output per cycle | 824 ccm (27.5 fl.oz.) |
| Max. inbound air pressure | 6 bar (87 psi) |
| Order number | 0673800 |
|
Model
|
DOSYS M |
| Output per cycle | 424 ccm (14.1 fl.oz.) |
| Max. inbound air pressure | 6 bar (87 psi) |
| Order number | 0666910 |
|
Model
|
DOSYS M |
| Output per cycle | 618 ccm (20.6 fl.oz.) |
| Max. inbound air pressure | 6 bar (87 psi) |
| Order number | 0667905 |
|
Model
|
DOSYS M |
| Output per cycle | 317 ccm (10.6 fl.oz.) |
| Max. inbound air pressure | 6 bar (87 psi) |
| Order number | 0669960 |
Frame: B On container, D on tripod, F on chassis, G on rack, H on lift truck, GZ On Rack with feed funnel, W on wall mount
Feed: ASL suction tube, DAS Direct suction, eM External mixer with intermediate adapter
Fields Of Application
Automotive
Railcar construction
Apparatus and mechanical engineering
Steel Construction
Wind power industry
Bonding
Tunnels
Materials
- Filler materials based on epoxy resin, polyurethane or peroxide
- Adhesives
- Sealants
- Thickeners
- Mastics
- Insulating materials
